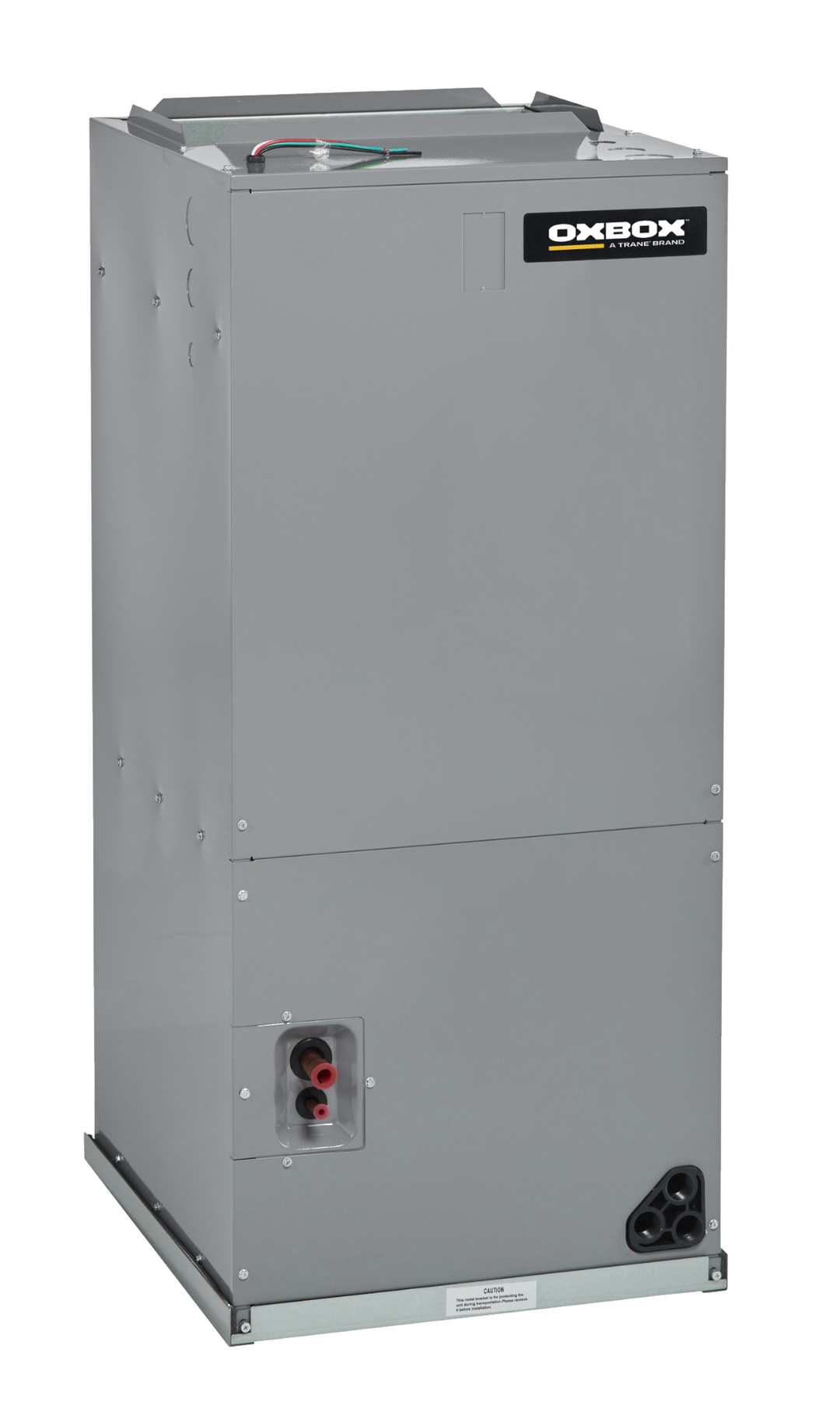

Oxbox J4AH4E36 B Series 3 Tons Single Stage Multi-Position 1/2 hp Air Handler

Oxbox J4AH4E36 Series 3 Tons Single Stage Multi-Position 1/2 hp Air Handler

Product Features:

HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
Oxbox air handlers are adaptable to both 13, 14 and 16 SEER models
1.5 5 ton models available
All-aluminum coil design
ECM blower motors achieve higher AHRI ratings
Painted, galvanized steel cabinets resist rust
Oxbox air handlers offer multiple airflow designs for convertibility: Vertical upflow/downflow; Horizontal left or right
Auxiliary heaters available in 5k
W20k
W
Dual drainage spouts offer flexibility in installation options
Removable front panel and blower and coil assemblies that slide out allow easy access for maintenance and troubleshooting

Specifications:

AMP: 3
BTU: 36000
Blower Type: Direct Drive
Coil Type: Plate Fin
Collection: J4AH4 Series
Communicating: Non-Communicating
Configuration: Multi-Position
Depth: 21-5/8 in
ETL Listed: Yes
Energy Star Compliant: No
Fan Speeds: 5
Height: 46-1/2 in
Horsepower: 1/2 hp
Liquid Line OD : 3/8 in
MBH: 36
Material: Aluminum
Max CFM: 1491
Phase: Single Phase
Power Source: Electric
RPM: 1050
Refrigerant: R-410A
Refrigerant Control: Orifice
SEER: 14
Stages: Single
Suction Line OD : 3/4 in
Tonnage: 3 Tons
UL Listed: No
Volts: 208/230V
Watts: 20
Weight: 125
