Oxbox 3-Ton 36000 BTU R-454B 13.4 SEER2 Split AC System - J5AC3036A1000+5JMM4A0B30S21S

Description

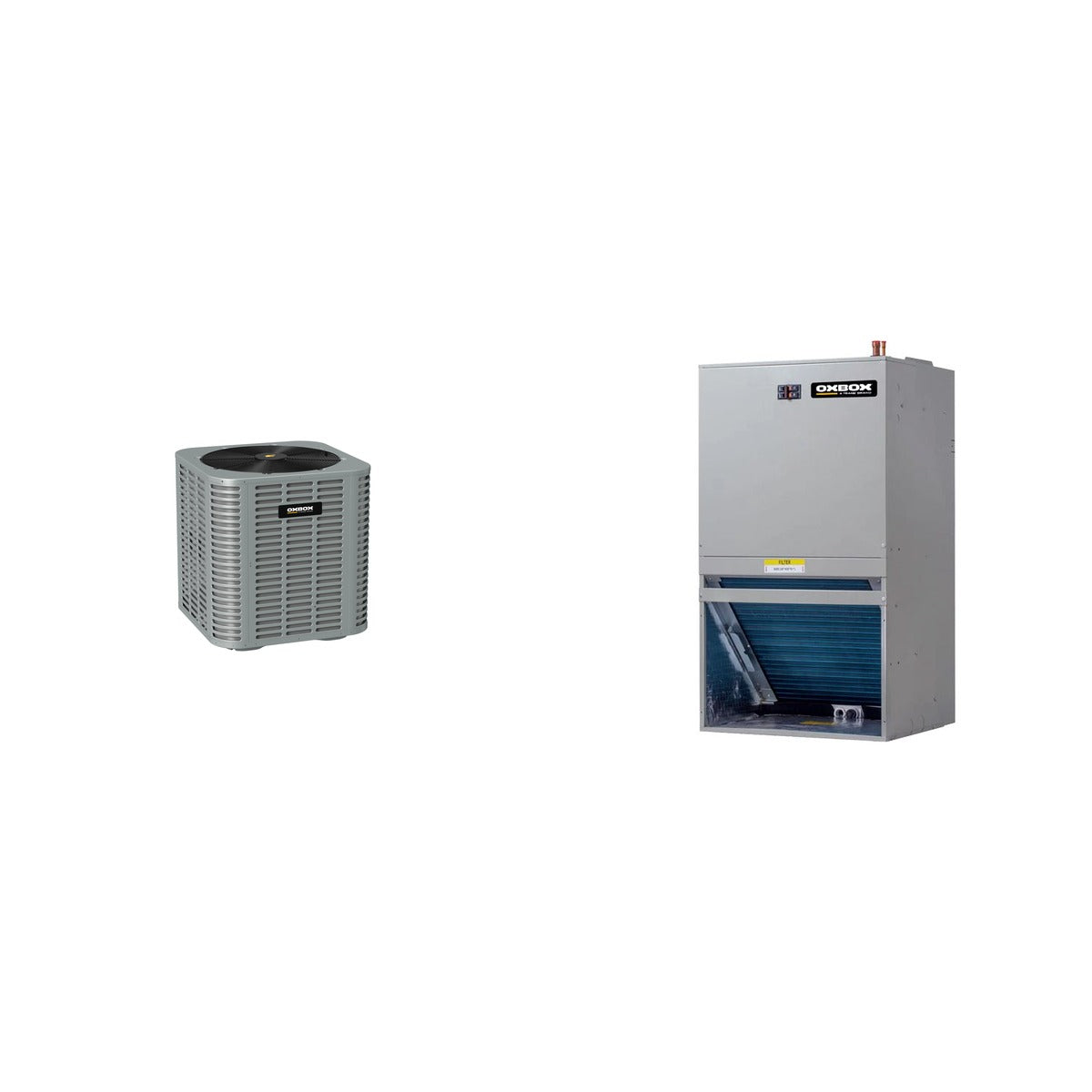

This bundle includes the Oxbox J5AC3036A1000 Air Conditioner and the Oxbox 5JMM4A0B30S21S Wall-Mount Air Handler, providing a complete solution for residential cooling needs. The air conditioner delivers a robust 3-ton cooling capacity with a high efficiency rating of 13.4 SEER2, while the wall-mount air handler complements it with a 2.5-ton capacity and is designed for R-454B refrigerant. Together, these components ensure optimal performance and energy efficiency, making them ideal for modern homes looking to upgrade their HVAC systems.

What's Included

• OXBOX J5AC3036A1000 - Oxbox J5AC3036A1000 Air Conditioner 3 Ton 13.4 SEER2 R-454B Residential Cooling (Qty x1)

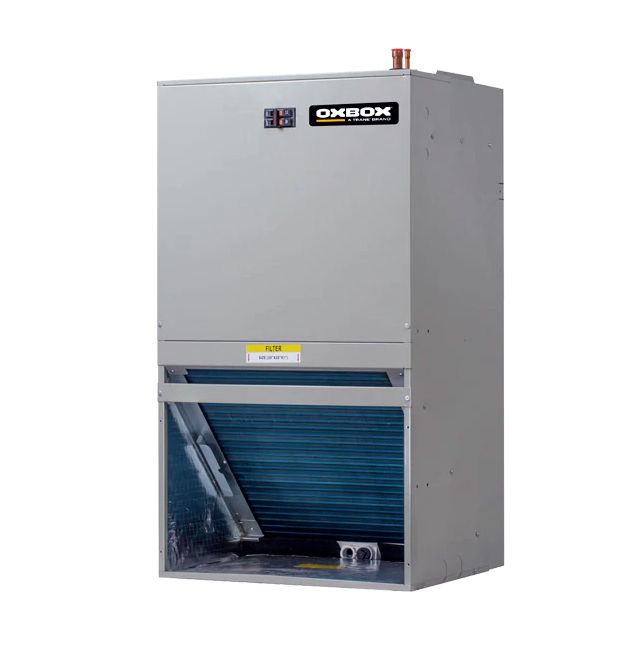

• OXBOX 5JMM4A0B30S21S - Oxbox 5JMM4A0B30S21S Wall-Mount Air Handler (PSC Motor) 2.5 Ton For R-454B Refrigerant (Qty x1)

Key Details

• Weight of Bundle: 328 lb (Oxbox 200 lb + Oxbox 128 lb)
• Cooling Capacity: 3 Tons (Air Conditioner), 2.5 Tons (Air Handler)
• SEER2 Rating: 13.4
• Refrigerant Type: R-454B (A2L)
• Maximum Overcurrent Protection: 38 amps (Air Conditioner)
• Liquid Line Connection: 3/8 inches (Air Conditioner), 3/8 inches (Air Handler)
• Suction Line Connection: 7/8 inches (Air Conditioner), 3/4 inches (Air Handler)
• Cabinet Dimensions: 24-15/16 inches H x 29-1/8 inches W x 29-1/8 inches D (Air Conditioner)
• Air Handler Dimensions: 39.5 inches H x 22 inches W x 19 inches D

Use & Compatibility

This bundle is designed for residential applications, providing efficient cooling when paired together. The air conditioner must be matched with the wall-mount air handler for optimal performance, and both units are compatible with R-454B refrigerant. Ensure installation is performed by a qualified HVAC technician to meet all safety and efficiency standards.
