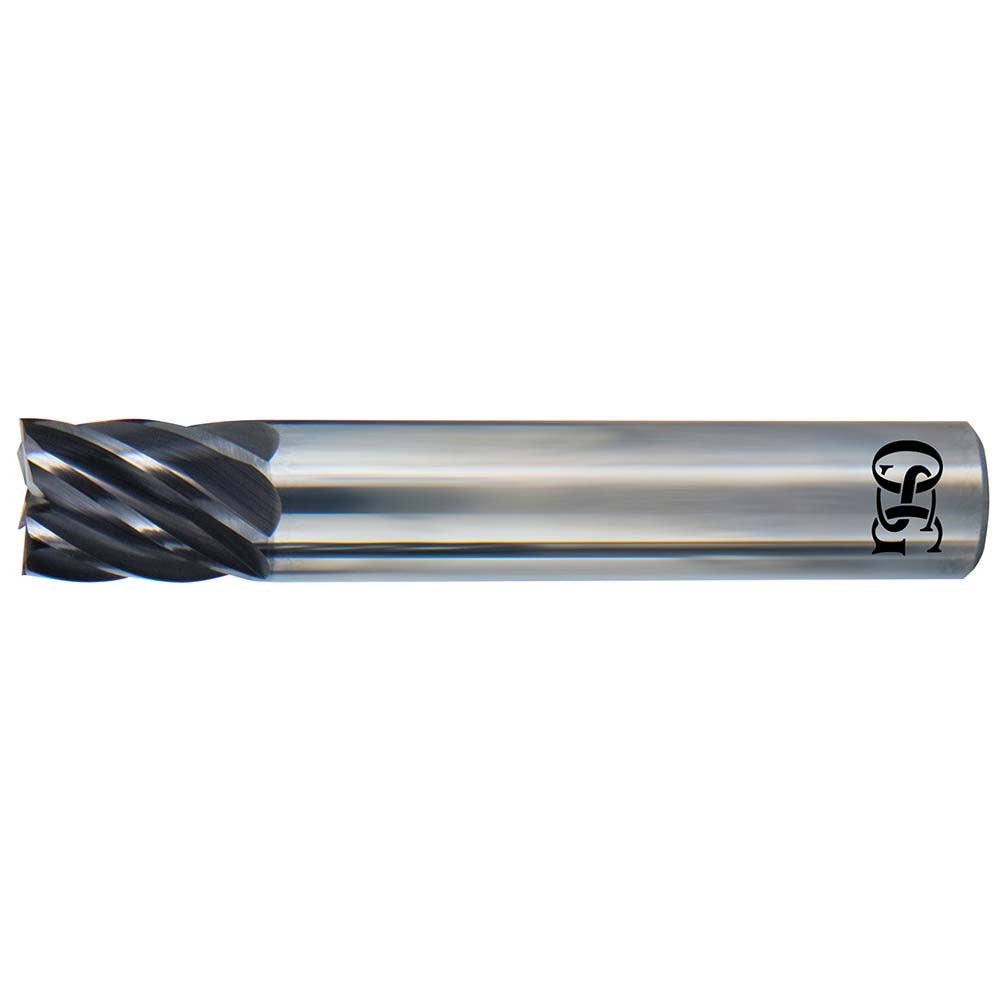

Osg VGM7-0042 Corner Radius End Mill 3/8 in 7 Flute Carbide

Product Description

The OSG VGM7-0042 is a 7-flute, solid carbide corner radius end mill designed for high-performance finishing operations in ferrous and hard materials. Built on OSG's VGM7 platform, it features a 3/8 inch mill diameter, a 0.02 inch corner radius, and a 9/16 inch length of cut. The EXO coating provides enhanced wear resistance and thermal stability, making this tool well suited for demanding cuts in steel, stainless steel, cast iron, superalloys, titanium, and hard materials. The close pitch, right-hand spiral flute geometry and variable index design help reduce chatter and improve surface finish consistency at the wall.

This end mill is intended for finishing passes in CNC machining centers and milling operations where tight tolerances and surface quality are the priority. The short length type and straight cylindrical shank keep deflection low during lateral cuts. The VGM7-0042 is appropriate for job shops, tool rooms, and production environments running P, M, K, S, and H material groups. It seats in a standard toolholder and is a single-end tool, so it is replaced rather than reground when the cutting edges are spent.

Key Features

• 7-flute close-pitch geometry for improved surface finish and feed-rate capability in finishing applications
• EXO coating for extended tool life in steel, stainless steel, cast iron, superalloys, titanium, and hard materials
• 0.02 inch corner radius reduces stress concentration at the cutting edge and minimizes chipping
• Variable index flute spacing dampens vibration and chatter during cut
• Solid carbide construction provides rigidity and dimensional stability in demanding cuts
• Right-hand cut, right-hand flute spiral with medium helix style for balanced chip evacuation

Compatibility

Designed for use with standard toolholders accepting a 3/8 inch straight cylindrical shank. Suitable for machining steel, stainless steel, cast iron, superalloys, titanium, and hard materials as identified by material codes P, M, K, S, and H.

Installation Notes

Installation is performed by a machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool from the holder. Verify runout at the toolholder before cutting to stay within the mill diameter tolerance of 0.0000 to -0.0011 inches. The shank diameter is held to h6 tolerance, so select a collet or end mill holder rated for that fit class to maintain concentricity.
