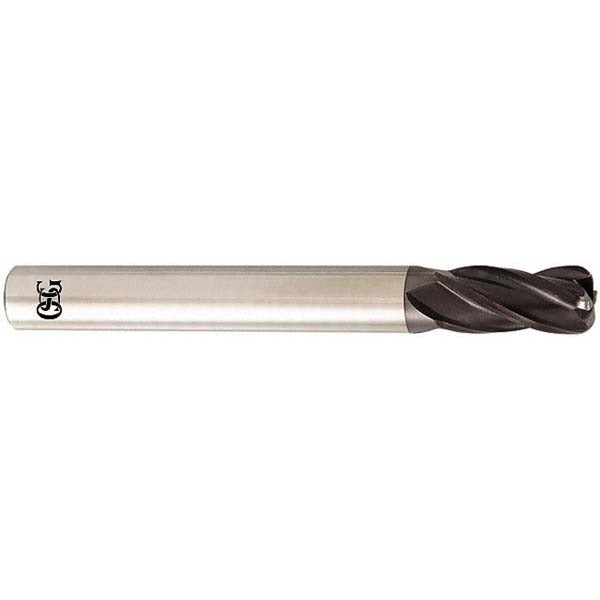

Osg HP434-5006 Corner Radius End Mill 1/2 in 4 Flute

Product Description

The OSG HP434-5006 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining applications. Built on OSG's HP434 series platform, it features a 0.5 inch mill diameter, a 0.06 inch corner radius, and four flutes with a right-hand spiral and medium helix angle of 35 degrees. A physical vapor deposition (PVD) TiAlN coating provides thermal resistance and wear protection at elevated cutting speeds. The tool is center-cutting and handles both roughing and finishing operations in a single pass. It is intended for use in CNC machining centers with a compatible straight-cylindrical toolholder.

This end mill is suited for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. The 1 inch length of cut and 3 inch overall length make it a practical choice for standard-depth slotting, profiling, and contouring operations in job shop and production environments. The corner radius geometry reduces edge chipping and improves surface finish at part corners compared to a square-end tool. Machinists and CNC programmers working in aerospace, die-mold, and general metalworking will find this tool applicable across a wide material range.

Key Features

• Solid carbide construction for rigidity and tool life in ferrous and hard materials
• TiAlN PVD coating for heat resistance and extended wear life at high cutting speeds
• 0.06 inch corner radius reduces stress concentration and improves corner surface finish
• Center-cutting design allows plunge entry and full-slot milling
• Right-hand cut, right-hand flute spiral with normal pitch for chip evacuation
• Compatible with standard straight-cylindrical toolholders — no special adapter required

Compatibility

Designed for use with straight-cylindrical toolholders. Suitable for machining steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials as noted in OSG HP434 series specifications.

Installation Notes

Installation is performed by a machinist or CNC setup technician. The machine spindle must be fully stopped and the tool changer or spindle must be de-energized before changing tooling. Verify toolholder bore tolerance matches the h6 shank diameter tolerance of this end mill before clamping. Follow the machine tool manufacturer's runout and torque specifications for the specific toolholder type in use.
