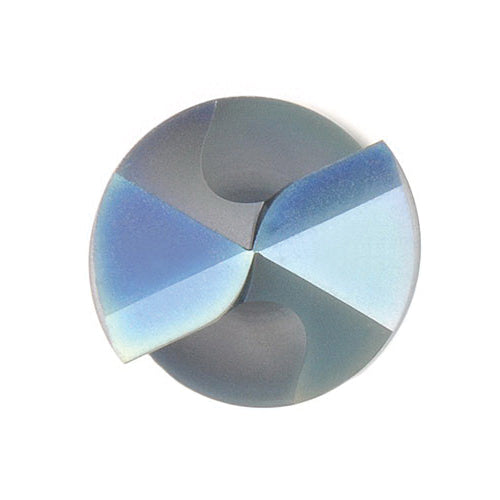

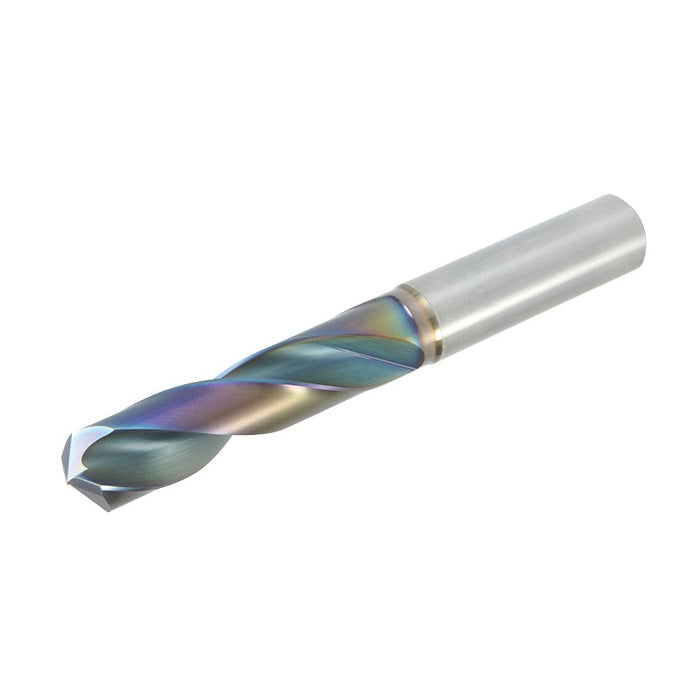

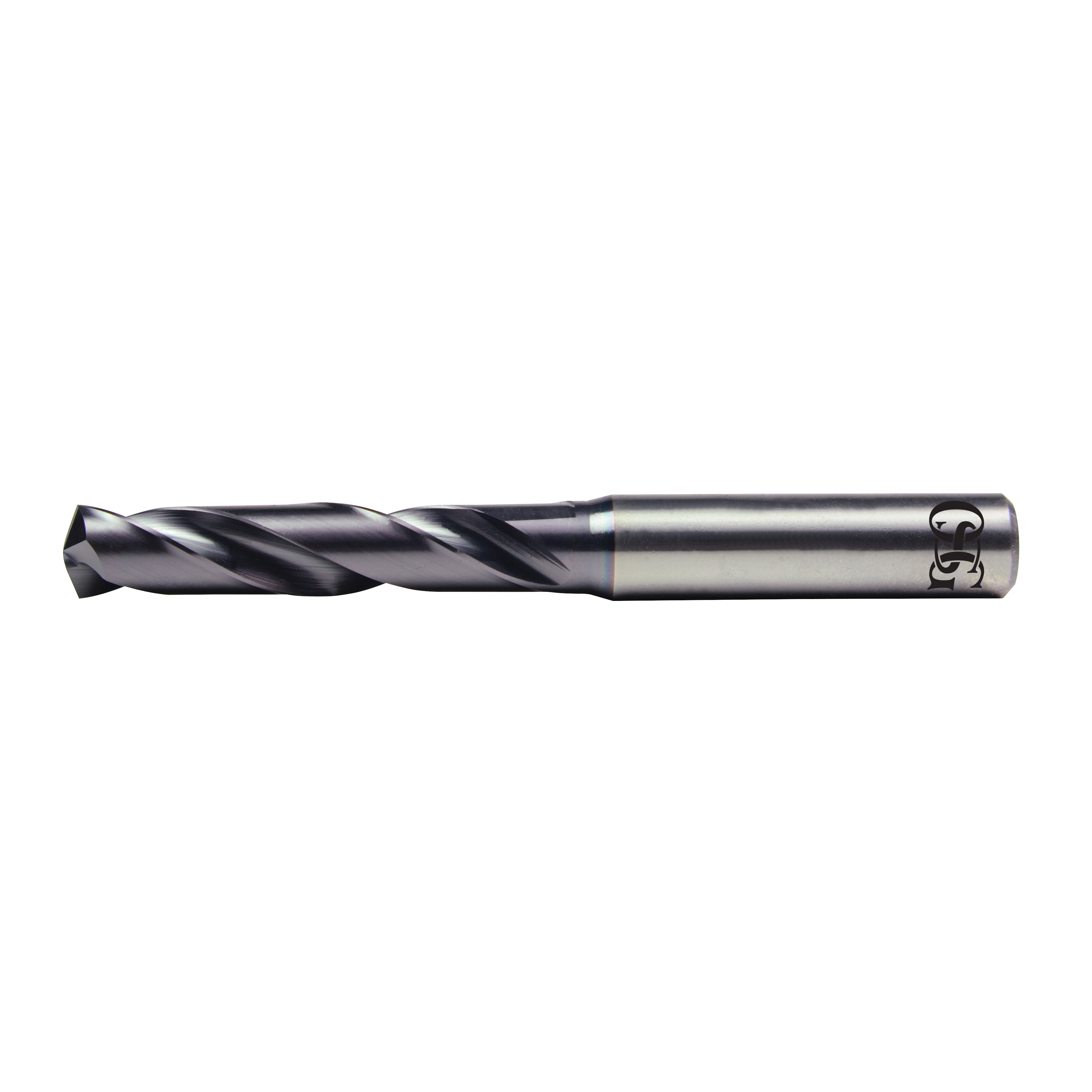

OSG HP243-1614 Performance Stub Length Screw Machine Drill Bit, 4.1 mm Drill - Metric, 0.1614 in Drill - Decimal Inch

Brand: OSG
SKU: HP243-1614
Availability: Out Of Stock
$43.69
$43.69
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The OSG HP243-1614 is a performance stub length drill bit designed for solid and coolant-through applications. Made from carbide, this drill bit has a diameter of zero point one six one four inches (four point one millimeters). Its shank diameter is zero point two three six two inches (six millimeters), with a flute length of zero point nine four four nine inches (twenty four millimeters). The overall length of the drill bit is two point five nine eight four inches (sixty six millimeters).

  • Manufactured by OSG
  • Carbide construction for durability
  • Versatile for various materials including low carbon and hardened steel

Product Highlights

This drill bit offers precision performance with effective cutting features, making it suitable for various drilling tasks and materials.

Product Information

Standard Information

  • Brand: OSG
  • Material: Carbide

Technical Specifications

  • Diameter: 0.1614 in (4.1 mm)
  • Shank Diameter: 0.2362 in (6 mm)
  • Flute Length: 0.9449 in (24 mm)
  • Overall Length: 2.5984 in (66 mm)
  • Number of Flutes: 2
  • Point Type: R-Thinning
  • Cutting Depth: 3XD
  • Cutting Direction: Right Hand
