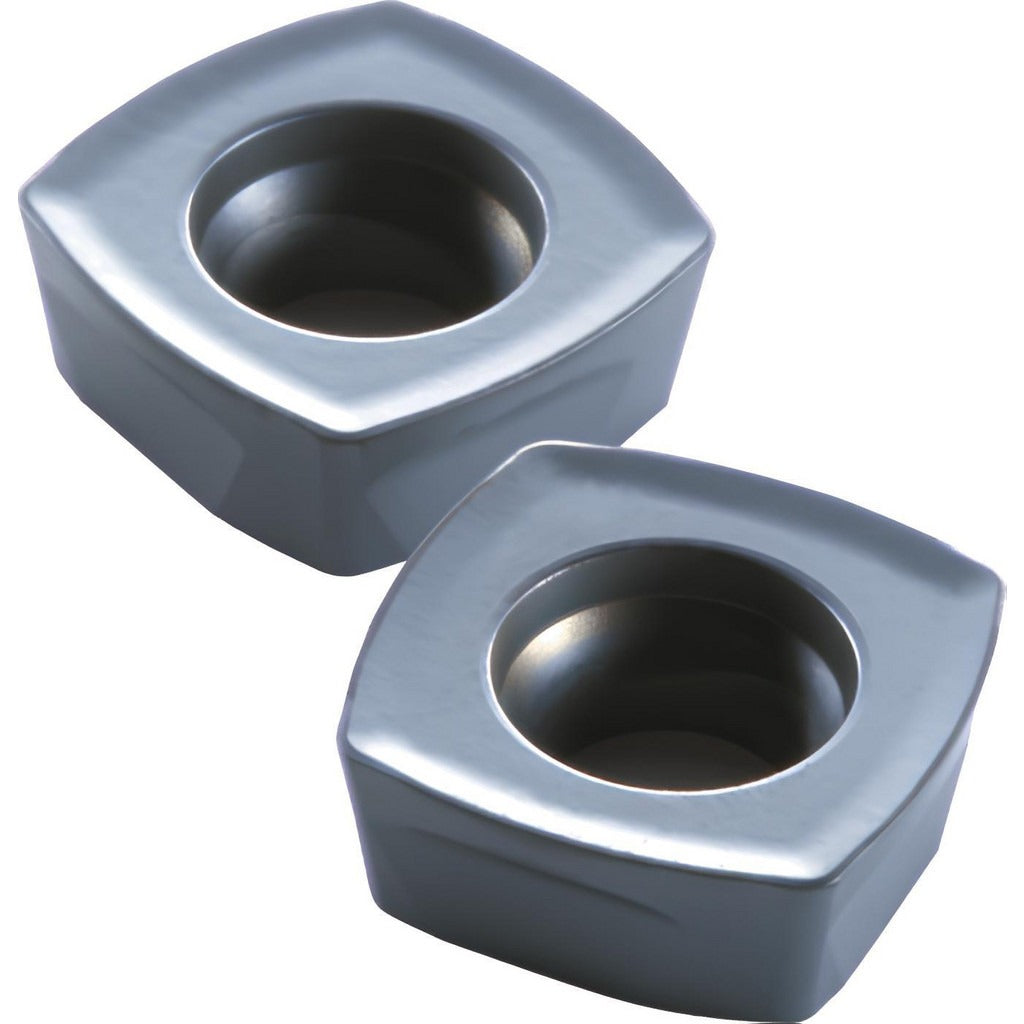

Osg 7826022 Milling Insert XP2025 Solid Carbide Sxmt

Product Description

The OSG 7826022 is a solid carbide milling insert in the SXMT square style, coated with TiAlN via a PVD process for extended wear resistance at elevated cutting temperatures. It carries the manufacturer grade XP2025 and is part of the 78PHC series, designed for use in compatible face and shoulder milling cutters. The insert measures 0.5 inches in length and width, with a thickness of 0.1875 inches, and features a 1.00 mm (0.0394 inch) corner radius with a GM chip breaker geometry. Four cutting edges are available on this single-sided, right-hand insert with a positive rake angle and chamfered and honed cutting edge style.

This insert is intended primarily for milling stainless steel (ISO material code M) and steel (ISO material code P), making it a practical choice for job shops, aerospace, and general machining operations where work-hardening materials are common. The positive rake geometry reduces cutting forces, which is beneficial when machining thin-walled or difficult-to-fixture stainless components. It is suitable for both roughing and semi-finishing passes within its rated maximum depth of cut. Licensed machinists and CNC machine operators are the primary users in production or maintenance machining environments.

Key Features

• TiAlN coating applied via PVD process for heat resistance and extended tool life in stainless and steel applications
• Four cutting edges per insert for cost-effective tooling use
• GM chip breaker geometry optimized for positive rake cutting and chip control
• Chamfered and honed cutting edge style for edge stability and reduced built-up edge
• Maximum depth of cut of 0.0512 inches suitable for controlled finish and semi-finish passes
• Screw-held insert retention for secure seating in compatible toolholders

Compatibility

Designed for use with OSG 78PHC series milling cutter bodies. The ANSI and ISO code for this insert is SXMT120410SR-GM. Minimum order quantity is 10 pieces; each package contains 1 insert.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or replacing inserts. Use the correct torque screwdriver or key specified for the cutter body to secure the insert screw — do not overtighten. Inspect the insert pocket and seating surface for chips or debris before installing a new insert to ensure proper seating and runout.
