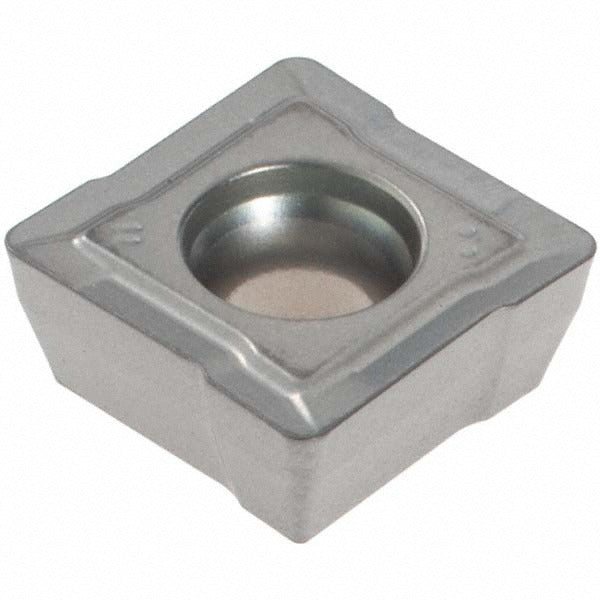

Osg 7823097 Indexable Drill Insert Xcmt XP9020 Carbide

Product Description

The OSG 7823097 is a solid carbide indexable drill insert in the XCMT style, designed for use in indexable insert drills in metal-cutting operations. Manufactured to the XP9020 grade, this insert features a TiAlN coating applied via PVD process, providing heat resistance and extended tool life in demanding drilling applications. The square insert geometry with an 8-degree relief angle and a 0.80 mm corner radius supports clean entry and efficient chip evacuation. At 0.0145 pounds, it is a single-piece replacement insert suited for production machining environments.

This insert is intended for right-hand cutting operations on indexable insert drill bodies that accept the XCMT insert style. Typical applications include hole-making in steel, cast iron, and other ferrous materials on CNC machining centers and turning centers. The TiAlN coating makes it well suited for dry or semi-dry cutting at elevated speeds. Machinists and tooling specialists working in aerospace, automotive, and general metalworking will find this insert appropriate for high-volume drilling cycles where consistent edge performance is required.

Key Features

• Solid carbide substrate with XP9020 manufacturer grade for durability in ferrous cutting
• TiAlN coating via PVD process for heat resistance and extended wear life
• Square XCMT insert style with 8-degree relief angle for positive cutting geometry
• 0.80 mm corner radius for controlled edge engagement and reduced chipping risk
• 10.89 mm inscribed circle for precise seating in compatible drill bodies
• Right-hand cutting direction; sold individually as a single insert

Compatibility

Designed for use in indexable insert drill bodies that accept XCMT-style inserts with a 10.89 mm inscribed circle and insert size designation 104608.

Installation Notes

Insert indexing and replacement should be performed by a qualified machinist or tooling technician with the machine fully stopped and locked out per applicable safety procedures. Use the correct torque wrench and insert screw specified by the drill body manufacturer when seating the insert — do not overtighten. Inspect the insert pocket for damage or debris before installing a new insert. Confirm cutting direction and insert orientation match the drill body before resuming operation.
