Osg 7823066 Indexable Drill Insert Xcmt XP9020 Carbide

Product Description

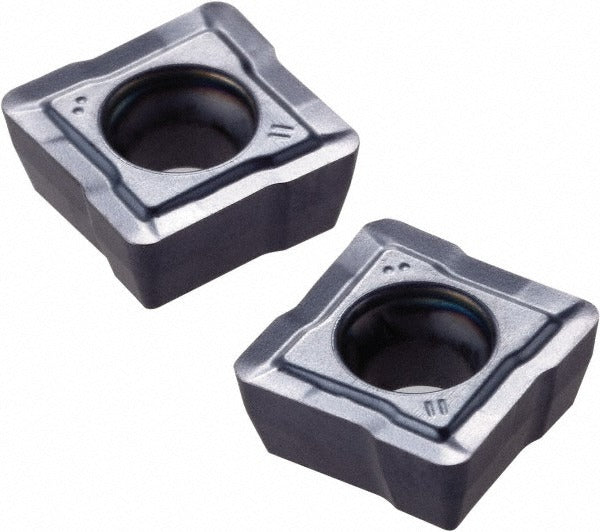

The OSG 7823066 is a solid carbide indexable drill insert designed for use in indexable insert drills in precision machining operations. Manufactured to the XCMT insert style in a square shape, it carries the XP9020 manufacturer grade with a physical vapor deposition (PVD)-applied TiAlN coating for heat and wear resistance at the cutting edge. The insert features a 6.46 mm inscribed circle, a 0.60 mm corner radius, and an 8-degree relief angle, making it suited to demanding drilling cycles where edge integrity and dimensional consistency are critical. Machinists and CNC operators in metalworking shops are the primary installers of this insert.

This insert is used in indexable drill toolholders that accept XCMT-style inserts with a square geometry. It is applicable to right-hand cutting setups on CNC machining centers, turning centers with driven tooling, and manual milling machines where indexable insert drills are employed. The TiAlN coating extends tool life in ferrous and hardened material applications, including alloy steels, cast iron, and stainless steel. The insert size designation is 062706.

Key Features

• Solid carbide substrate for rigidity and thermal resistance in interrupted and continuous cuts
• PVD-applied TiAlN coating improves hardness and oxidation resistance at elevated cutting temperatures
• XCMT square insert style with 8-degree relief angle for positive cutting action
• 0.60 mm corner radius balances edge strength with surface finish requirements
• 6.46 mm inscribed circle for consistent seating and repeatable positioning in compatible toolholders
• Right-hand cutting direction for standard CNC and manual drilling operations

Compatibility

Designed for use in indexable drill toolholders that accept XCMT-style square inserts with a 6.46 mm inscribed circle and 0.60 mm corner radius.

Installation Notes

Insert replacement and indexing should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before handling inserts. Use the correct torque wrench and manufacturer-specified clamping hardware when seating the insert to ensure proper contact with the toolholder pocket. Inspect the pocket for chips or damage before installing a fresh insert.
