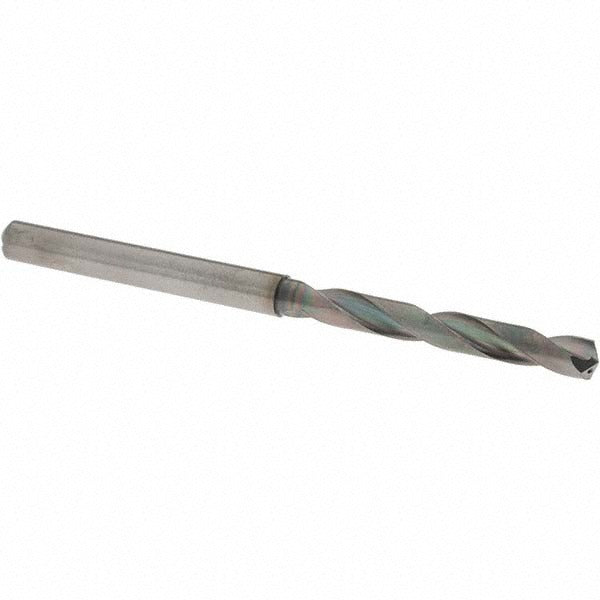

Osg 651028011 Carbide Jobber Drill Bit 9/32 in 140 Deg

Product Description

The OSG 651028011 is a solid carbide jobber-length drill bit designed for high-performance drilling in demanding ferrous and exotic materials. Ground to a 9/32 inch (0.2813 inch decimal) diameter with a 140-degree point angle and R-thinned web, it promotes self-centering entry and reduces thrust in tough workpiece materials. The EgiAs coating extends tool life under heat and abrasion. At 118 mm overall length with a 58 mm flute length, it fits standard jobber-length applications across a wide range of CNC and manual drilling operations. A licensed machinist or toolroom technician is the typical end user.

This bit is suited for production and job-shop drilling in steel, alloy steel, cast iron, titanium, and titanium alloys. Its coolant-through design supports high-speed, deep-hole drilling cycles in blind-hole, cross-hole, and general drilling applications. The 5xD flute-to-diameter ratio allows clearance in deeper cuts while maintaining chip evacuation. The straight-cylindrical shank at 5/16 inch diameter seats in standard drill chucks and collet systems without modification.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• EgiAs coating for elevated heat resistance and extended tool life
• 140-degree point angle with R-thinned web for self-centering and reduced thrust
• Coolant-through capability supports high-feed and deep-hole cycles
• Right-hand spiral flute with regular spiral type for consistent chip evacuation
• Rated for steel, alloy steel, cast iron, titanium, and titanium alloys (material codes P, K, S, H)

Compatibility

Designed for use in blind-hole, cross-hole, self-centering, and standard drilling operations on steel, alloy steel, cast iron, titanium, and titanium alloy workpieces. Fits any machine spindle or chuck accepting a 5/16 inch straight-cylindrical shank. Part of OSG Series 6510.

Installation Notes

Installation and use should be performed by a qualified machinist or toolroom technician familiar with carbide tooling. Secure the straight-cylindrical shank fully in the collet or chuck before initiating a cut. Solid carbide tooling is brittle — avoid side loads, interrupted cuts at high feed rates, or re-chucking a worn shank without inspection. When using the coolant-through feature, verify coolant pressure and flow are matched to the machine spindle before running.
