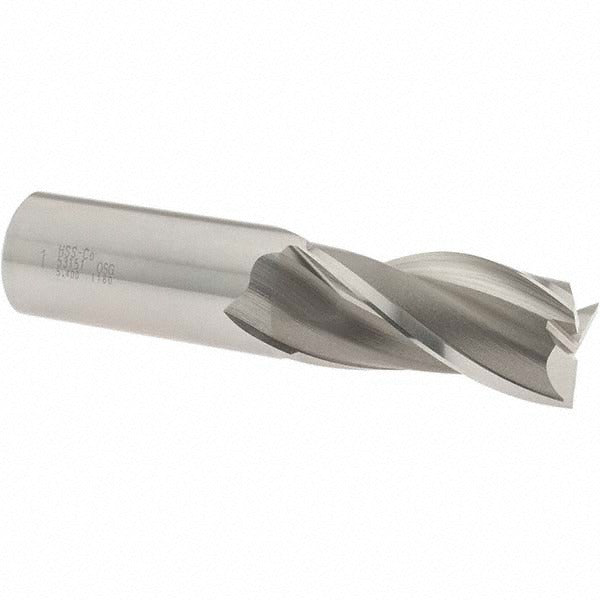

Osg 5315100 Square End Mill 1 in 3 Flute Cobalt

Product Description

The OSG 5315100 is a cobalt square end mill designed for milling operations in a wide range of metalworking applications. Built from M42 high-speed cobalt steel, it delivers elevated heat and wear resistance compared to standard HSS tooling, making it well suited for harder workpiece materials and demanding cut conditions. The cutter features a 1 inch diameter, a 2 inch length of cut, and a 30-degree spiral helix angle with 3 flutes, balancing chip evacuation with cutting efficiency. Centercutting geometry allows both plunge and peripheral milling. This tool is uncoated and part of the OSG Series 531 family of general-purpose end mills.

This end mill is intended for use in manual mills, CNC machining centers, and knee mills where a 1 inch shank is the standard interface. It is suited for side milling, slot milling, and face milling operations in carbon steel, alloy steel, stainless steel, and similar ferrous materials. Right-hand cut and right-hand flute orientation follow standard milling convention. The regular-length configuration and 4.5 inch overall length make it appropriate for typical production and maintenance machining environments where extended reach is not required.

Key Features

• M42 cobalt steel construction for superior heat and abrasion resistance versus standard HSS
• Centercutting design allows direct plunge entry into the workpiece
• 30-degree helix angle promotes smooth chip flow and reduced cutting forces
• 3-flute configuration balances chip clearance and surface finish capability
• Right-hand cut, right-hand flute orientation compatible with standard spindle direction
• Uncoated finish suitable for use with cutting fluid in ferrous machining

Compatibility

Designed as an OEM-style general-purpose replacement or production end mill for machines accepting a 1 inch straight shank, including standard R8, CAT, BT, and collet chuck toolholders sized for 1 inch shanks.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the spindle is fully stopped and the machine is locked out before mounting or removing tooling. Secure the shank fully within the toolholder to the recommended engagement depth and verify runout with a dial indicator before commencing cuts. Do not exceed the tool manufacturer's recommended feed and speed parameters for the workpiece material.
