OSG 5215100 1 X 1 2FL BALL SEM L521

Product Description

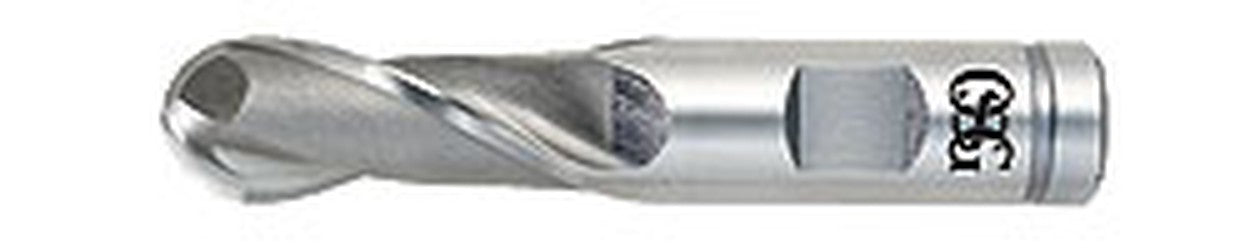

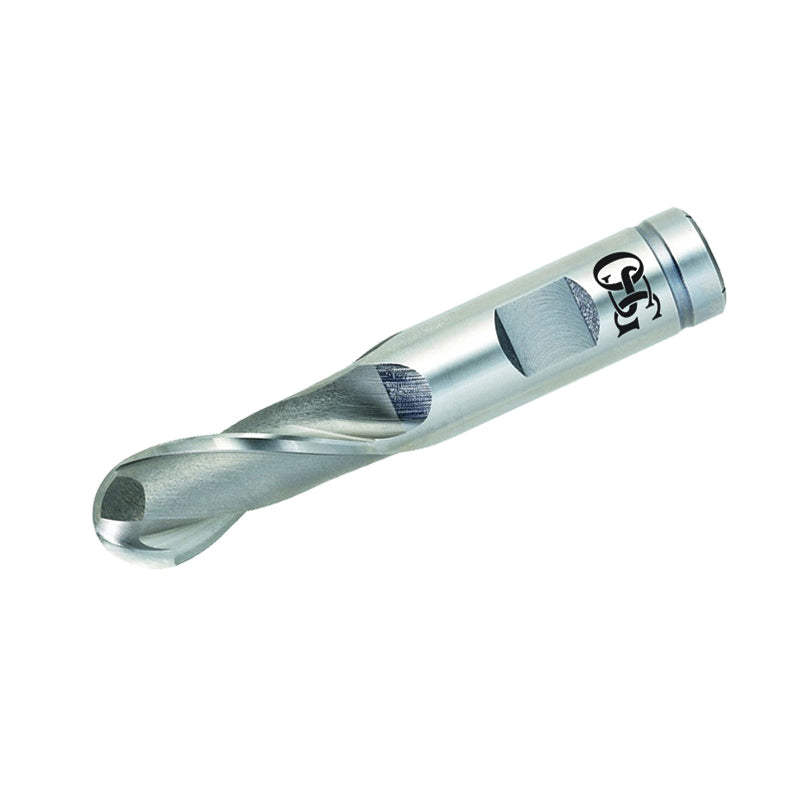

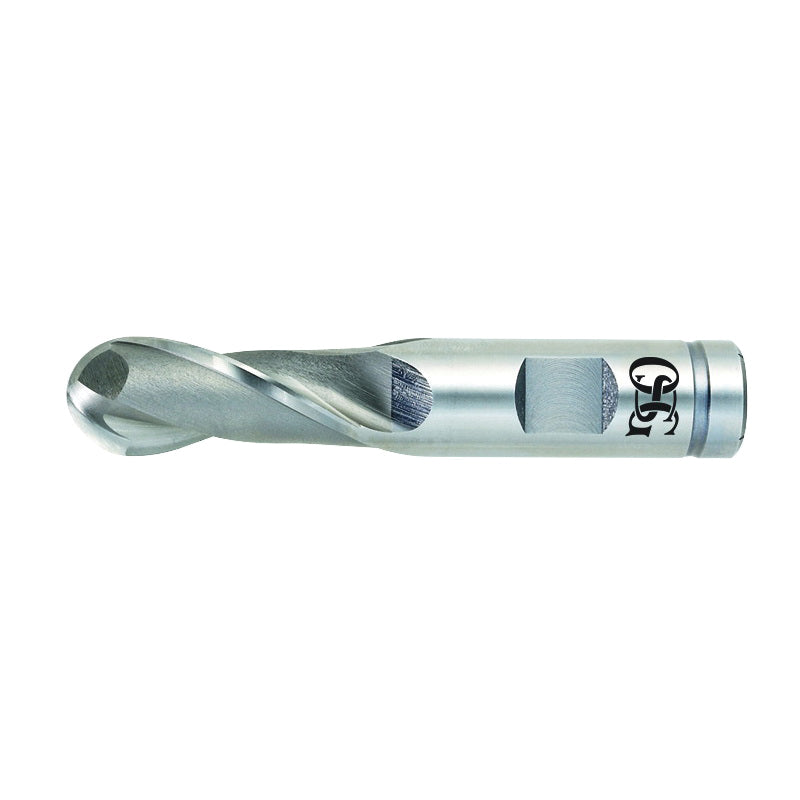

OSG 5215100 is a ball nose end mill designed for precision milling tasks. This tool features a diameter of one inch and is made from high-speed steel with cobalt. It comes uncoated and has two flutes, ensuring good chip removal during operation. The flute length is two and a quarter inches, while the overall length is four and three quarters inches, making it suitable for a variety of machining applications.

• Diameter: One inch
• Flutes: Two
• Length of Cut: Two and a quarter inches

Product Highlights

This end mill is ideal for producing smooth finishes on metal surfaces and is suitable for use in CNC machines.

Product Information

Standard Information

• Brand: OSG
• MPN: 5215100

Technical Specifications

• Material: HSS-CO
• Coating: Uncoated
• Flute Type: Spiral
• Shank Diameter: One inch
• Overall Length: Four and three quarters inches
• Length of Cut: Two and one quarter inches
• Helix Angle: 30 degrees
• Shank Type: Weldon Flat
• Cutting Direction: Right Hand
