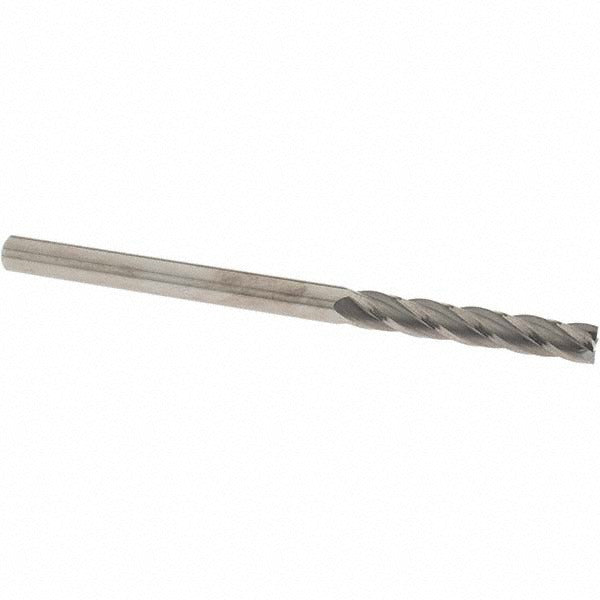

Osg 484-2500 Square End Mill 1/4 in 4-flute Solid Carbide

Product Description

The OSG 484-2500 is a solid carbide square end mill designed for precise material removal in milling operations. Built from micrograin carbide, it delivers the rigidity and edge retention needed for ferrous and non-ferrous metal cutting. The 4-flute, spiral geometry with a 30-degree helix angle promotes efficient chip evacuation and surface finish quality. At 4 inches overall length with a 1.5-inch length of cut, this is an extra-long configuration suited to applications requiring reach beyond standard tooling. The centercutting design allows plunge entry. Right-hand cut and right-hand flute orientation are standard for conventional CNC milling setups.

This end mill fits machining centers, CNC knee mills, and manual mills where a 0.25-inch shank is accepted. The extra-long overall length makes it appropriate for deep-pocket milling, stepped features, and applications where clearance between the spindle and workpiece is limited. It is sold as a single unit and is well suited for machine shops, toolrooms, and production environments running aluminum, steel, brass, and similar materials. The uncoated finish keeps regrinding straightforward.

Key Features

• Solid micrograin carbide construction for high rigidity and extended edge life
• 4-flute spiral geometry with 30-degree helix angle for efficient chip flow
• Centercutting design permits direct plunge milling without pre-drilling
• Extra-long 4-inch OAL with 1.5-inch length of cut for deep-pocket reach
• Right-hand cut, right-hand flute — compatible with standard CNC spindle rotation
• Uncoated finish allows straightforward regrinding and reconditioning

Compatibility

Designed for use in any milling machine or machining center equipped with a 0.25-inch collet, end mill holder, or compatible toolholder accepting a 0.25-inch shank diameter. Part of the OSG Series 484 extra-long square end mill family.

Installation Notes

Install and remove tooling only with the spindle fully stopped and machine power isolated. Seat the shank fully into the holder to the recommended engagement depth before torquing the set screw or collet nut. Inspect the cutting edges and shank for chips or runout before use. Follow the machine manufacturer and tooling guidelines for speeds, feeds, and depth of cut for the workpiece material.
