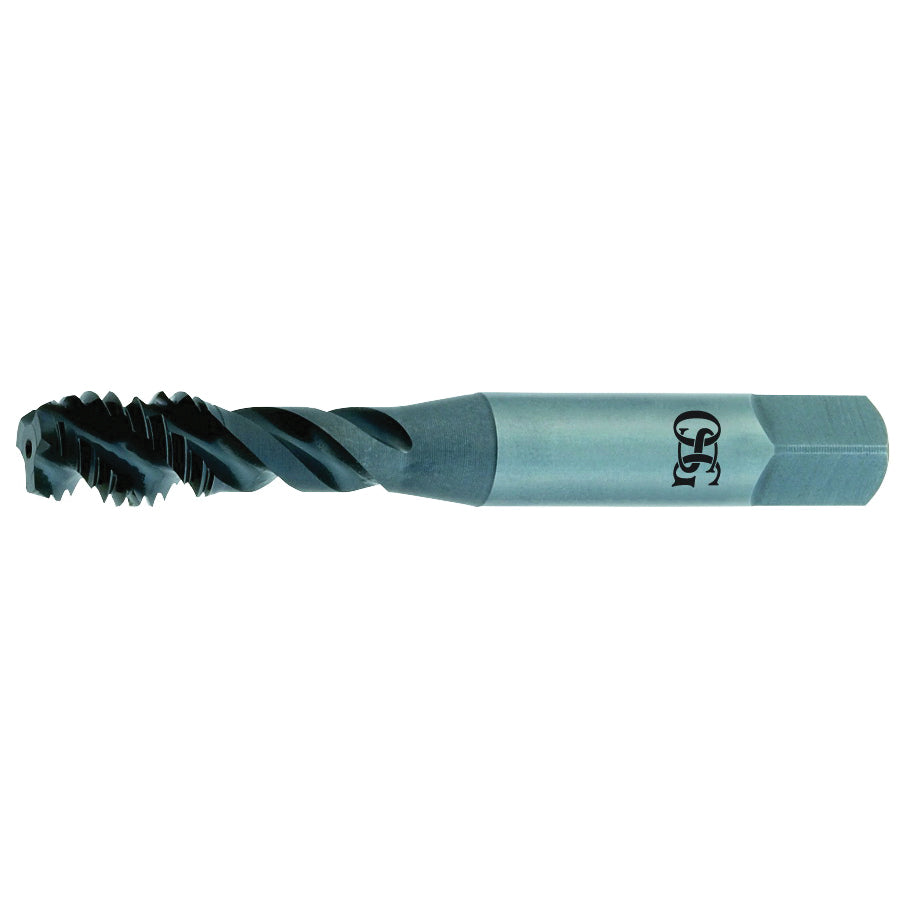

OSG 2992901 HY-PRO 2992901 Premium Spiral Flute Tap Right Hand Cutting M16-2 Thread D7 Thread Limit

Product Description

The OSG 2992901 is a premium spiral flute tap designed for threading applications. This tap features a right-hand cutting action and is suitable for M16-2 threads. It is ideal for use with alloy steel, cast iron, and stainless steel, making it versatile for various materials.

• HSSE material for durability
• Steam oxide finish enhances lubrication
• Designed for efficient chip evacuation

Product Highlights

The OSG 2992901 is engineered for reliable performance in threading tasks, featuring a D7 thread limit and a modified bottoming chamfer.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Size: M16
• Type: Premium
• Series: 299
• Material: HSSE
• Thread Size: M16-2
• Chamfer Type: 2.5P-3P Modified Bottoming
• Shank Length: 42 mm
• Thread Limit: D7
• Thread Length: 16 mm
• Finish/Coating: Steam Oxide
• Overall Length: 96 mm
• Shank Diameter: 12.19 mm
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Metric
• Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel, Stainless Steel
• Through Coolant: No
