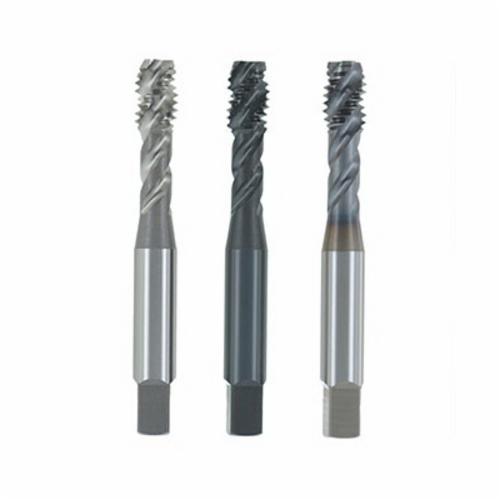

OSG 2992301 HY-PRO 299 Spiral Flute Tap, Right Hand Cutting, M12x1.75 Thread, D11 Thread Limit

Product Description

OSG 2992301 is a spiral flute tap designed for threading applications. This metric tap features a right hand cutting direction and is ideal for various materials including medium to high carbon steels, alloys, cast iron, and stainless steels. It has a thread size of M12x1.75 and a D11 thread limit, making it suitable for precision work. The semi-bottoming chamfer and steam oxide finish provide enhanced wear resistance.

• Right hand cutting for efficient operation
• Three flutes for improved chip evacuation
• Suitable for a range of materials including stainless and hardened steel

Product Highlights

This tap is the original Do It All spiral flute tap, offering increased wear resistance and mechanical lubricity for an extended tap life.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: MX

Technical Specifications

• Series: 299
• Material: HSS-E
• Thread Size: M12x1.75
• Chamfer Type: Semi-Bottoming
• Class of Fit: D6
• Thread Limit: D11
• Thread Length: 1-21/32 in
• Overall Length: 3-3/8 in
• Shank Diameter: 0.367 in
• Flute Direction: Right Hand
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Metric
• Material Application: Medium to High Carbon Steels, Alloy Steels, Cast Iron, Carbon Steels, Die Steels, Stainless Steels and Hardened Steel
• Through Coolant: No
