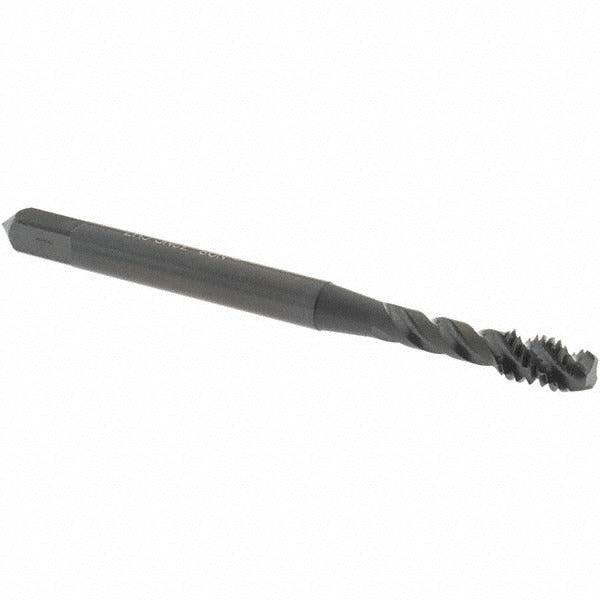

Osg 2918001 Spiral Flute Tap 8-32 Unc Modified Bottoming

Product Description

The OSG 2918001 is a spiral flute tap designed for cutting 8-32 UNC internal threads in a wide range of ferrous materials. It features a 45-degree helix angle that evacuates chips upward and out of the hole, making it well suited for blind-hole tapping applications where chip packing is a common problem. The tap is manufactured from vanadium high-speed steel and carries a steam oxide coating that reduces friction and provides a measure of corrosion resistance during service and storage. The modified bottoming chamfer allows threading close to the bottom of a blind hole. Machinists and tooling technicians working in production or maintenance environments are the primary users of this tap.

This tap is intended for use in materials including alloy steel, carbon steel, cast iron, stainless steel, die steel, and hardened steel. The H7 thread limit designates a slightly oversized tolerance class, which accommodates surface coatings or plating on finished parts. It is applicable in CNC machining centers, drill presses, and hand-tapping setups where a 8-32 UNC thread form is required. Coolant-through capability is not available on this tap, so external cutting fluid application is recommended when tapping harder materials.

Key Features

• 45-degree right-hand spiral flute geometry promotes upward chip evacuation in blind holes
• Modified bottoming chamfer for threading near the bottom of a blind bore
• Vanadium high-speed steel construction for improved wear resistance over standard HSS
• Steam oxide coating reduces friction and provides corrosion resistance
• H7 thread limit suits applications where finished parts will receive a surface coating or plating
• Right-hand thread direction, compatible with standard tapping equipment and tap holders

Compatibility

Designed for cutting 8-32 UNC right-hand internal threads. Rated for use in alloy steel, carbon steel, cast iron, stainless steel, die steel, and hardened steel workpieces.

Installation Notes

This tap should be installed by a qualified machinist or tooling technician. Power down or de-energize any machine tool before changing tooling. Use a properly sized tap wrench or CNC tap holder to maintain axial alignment and prevent tap breakage. Apply a suitable cutting fluid for the workpiece material, particularly when tapping stainless or hardened steel, to extend tool life and produce a clean thread form.
