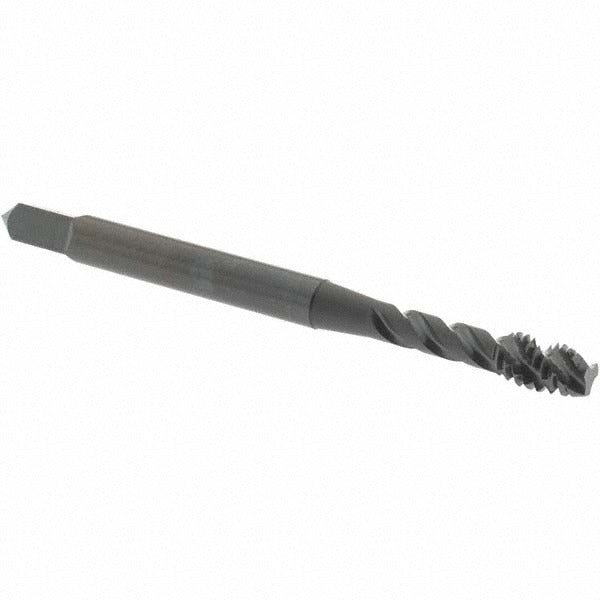

Osg 2917801 Spiral Flute Tap 8-32 Unc 3 Flute Hss

Product Description

The OSG 2917801 is a spiral flute tap designed for cutting 8-32 UNC internal threads with a right-hand thread direction. Built from vanadium high-speed steel and finished with a steam oxide coating, this tap delivers consistent thread quality in a range of ferrous materials. The 45-degree helix angle drives chips up and out of the hole, making it well suited for blind-hole tapping applications. The modified bottoming chamfer allows threading close to the bottom of a hole while maintaining reliable tool engagement. Overall length is 2.125 inches with a thread length of 0.251 inches.

This tap is intended for machine or hand tapping operations in metalworking and fabrication environments. The H5 thread limit designation makes it appropriate for close-tolerance threading work where fit and finish matter. Rated for use in alloy steel, carbon steel, cast iron, stainless steel, die steel, and hardened steel, it covers the majority of materials encountered in general machining, tool and die work, and maintenance and repair operations. It is sold and packaged as a single unit.

Key Features

• 8-32 UNC right-hand thread form with 32 threads per inch
• 45-degree right-hand spiral flute directs chips away from the cutting zone for cleaner blind-hole tapping
• Modified bottoming chamfer for threading near the bottom of a hole
• Vanadium high-speed steel construction for wear resistance in ferrous materials
• Steam oxide coating reduces friction and improves lubrication retention
• H5 thread limit for close-tolerance thread production

Compatibility

Rated for use in alloy steel, carbon steel, cast iron, stainless steel, die steel, and hardened steel. Part of the OSG Series 290 spiral flute tap line.

Installation Notes

Installation is performed by machinists and maintenance technicians using a tapping machine, drill press, or hand tap wrench. Always ensure the pilot hole is drilled to the correct tap drill size for 8-32 UNC before tapping. Use an appropriate cutting fluid or tapping compound for the workpiece material to extend tool life and improve thread quality. Secure the workpiece firmly before beginning the tapping operation to prevent tap breakage.
