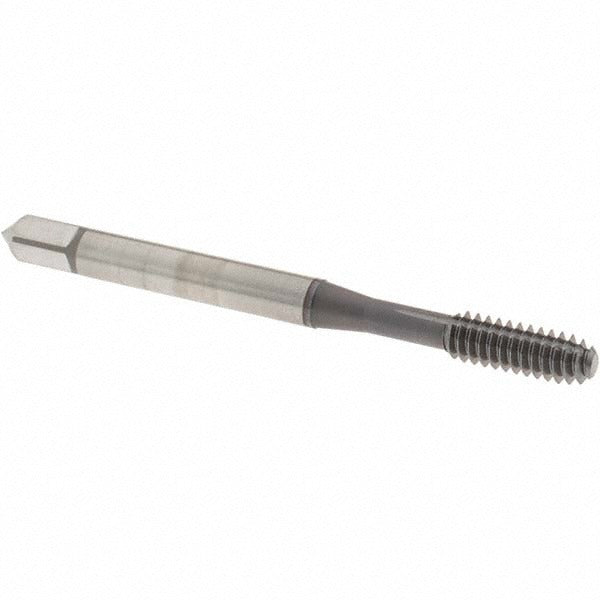

Osg 2865408 Thread Forming Tap 10-24 Unc Ticn Hss

Product Description

The OSG 2865408 is a thread forming tap designed for blind hole threading in metalworking applications. It cuts a 10-24 UNC thread profile to a 2B class of fit using a bottoming chamfer with 1.5 to 2 chamfered threads, allowing the tap to reach near the bottom of a blind hole. Manufactured from high-speed steel (HSS) with a TiCN (titanium carbonitride) coating, this tap delivers improved wear resistance and reduced friction compared to uncoated tooling. Overall length is 2.375 inches with a shank diameter of 0.194 inches. This tool is part of the OSG HY-PRO NRT series and is sold individually.

The 2865408 is suited for tapping blind holes in aluminum, cast aluminum, low-carbon steel, and medium-carbon steel at 24 threads per inch. The bottoming chamfer design is preferred when full thread depth close to the bottom of the hole is required, such as in fixture plates, brackets, and structural components. It operates in a right-hand thread direction and does not require coolant-through capability, making it compatible with standard manual or CNC tapping setups in production and maintenance environments.

Key Features

• 10-24 UNC thread profile to 2B class of fit for standard fastener compatibility
• Bottoming chamfer (1.5 to 2P) for threading close to the bottom of blind holes
• TiCN coating improves surface hardness and extends tool life in steel and aluminum
• High-speed steel construction provides toughness across a range of workpiece materials
• Right-hand thread direction; no coolant-through required
• Tapping depth of 0.866 inches with thread length of 0.492 inches

Compatibility

Rated for use in aluminum, cast aluminum, low-carbon steel, and medium-carbon steel (material application codes P and N). Designed as an OEM-style replacement tap for applications requiring 10-24 UNC bottoming taps in the OSG HY-PRO NRT series.

Installation Notes

Thread forming taps should be installed by a machinist or qualified tooling technician familiar with tapping feeds, speeds, and torque limits for the workpiece material. Ensure the machine spindle or tap handle is properly aligned to avoid tap breakage, especially in blind holes. Use an appropriate tapping fluid or cutting oil for the material being threaded. Always power down or lock out the machine before changing tooling.
