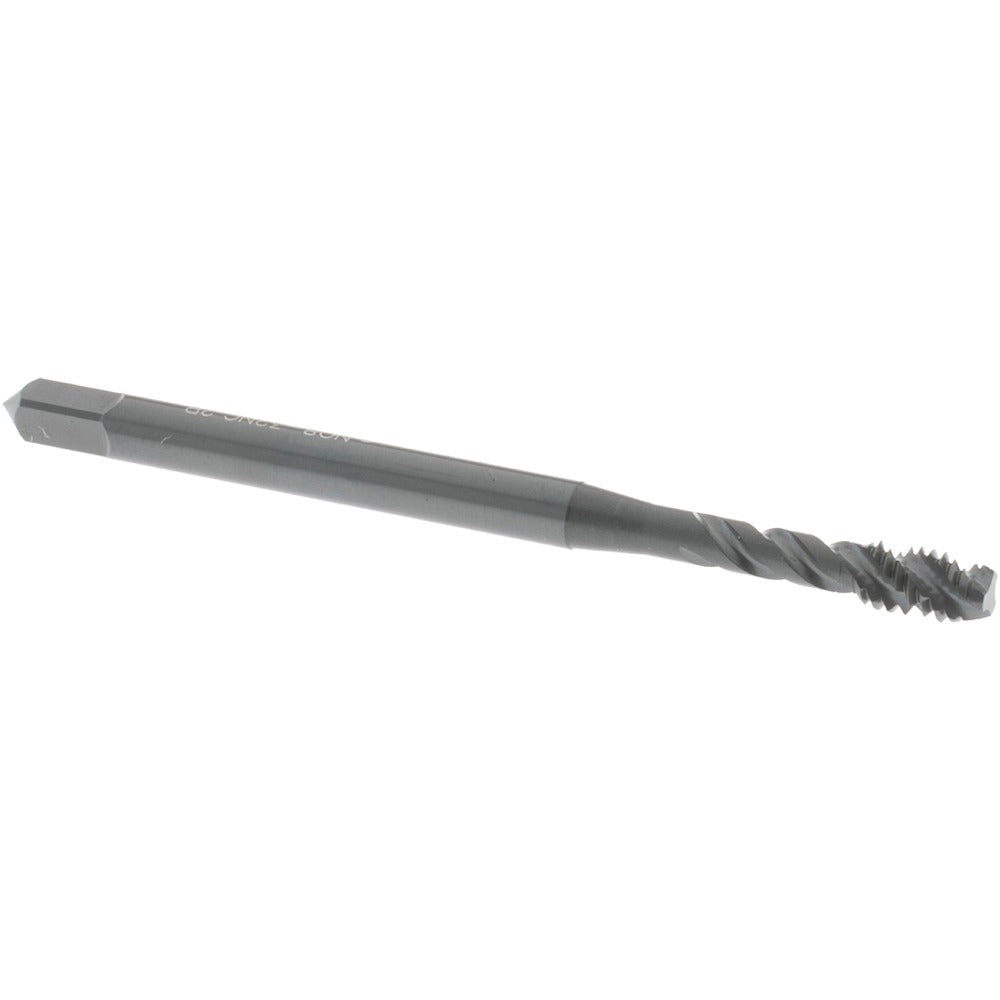

Osg 2217801 Spiral Flute Tap 8-32 Unc Modified Bottoming

Product Description

The OSG 2217801 is a spiral flute tap designed for cutting internal threads in a wide range of ferrous and alloy materials. It produces an 8-32 UNC right-hand thread using a modified bottoming chamfer, making it well-suited for threading into blind holes where a standard plug tap cannot reach the bottom. The tap is machined from vanadium high-speed steel and finished with a steam oxide coating that reduces friction and helps resist galling during the tapping operation. With 3 flutes and a 45-degree helix angle, chips are efficiently evacuated out of the hole, reducing the risk of tap breakage in tougher materials.

This tap is intended for use by machinists, tool and die workers, and maintenance technicians working with alloy steel, carbon steel, cast iron, die steel, hardened steel, and stainless steel. The modified bottoming chamfer allows threading closer to the bottom of blind holes than a standard bottoming chamfer allows in many applications. It is a solid choice for production tapping operations on manual machines, CNC machining centers, or tapping heads where consistent thread quality at the 2B class of fit is required.

Key Features

• 8-32 UNC right-hand thread, 2B class of fit for standard tolerance threaded assemblies
• Modified bottoming chamfer for threading closer to the base of blind holes
• 45-degree right-hand spiral flute for upward chip evacuation in blind hole applications
• Vanadium high-speed steel construction for durability across a broad range of workpiece materials
• Steam oxide coating reduces friction and improves lubricity during cutting
• Compatible with alloy steel, carbon steel, cast iron, die steel, hardened steel, and stainless steel

Compatibility

Rated for use in alloy steel, carbon steel, cast iron, die steel, hardened steel, and stainless steel workpieces as specified by the manufacturer. Coolant-through is not supported on this tap.

Installation Notes

This tap should be installed by a qualified machinist or maintenance technician familiar with threading operations. Always secure the workpiece and use a properly sized tap wrench, tapping head, or CNC spindle with appropriate speed and feed settings for the workpiece material. Apply cutting fluid or tapping compound to extend tool life and improve thread finish. Do not use this tap in reverse rotation or force it past resistance, as this can result in tap breakage.
