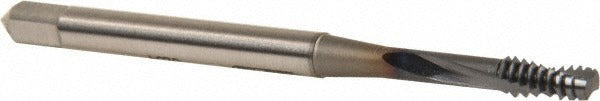

Osg 1752208 Spiral Flute Tap 6-32 Unc 2B Powdered Metal

Product Description

The OSG 1752208 is a spiral flute tap designed for cutting 6-32 UNC internal threads in challenging materials including alloy steel, stainless steel, hardened steel, titanium, and high-nickel alloys. It features a modified bottoming chamfer for threading close to the bottom of blind holes and carries a 2B class of fit for standard fastener applications. Built from powdered metal with a TICN (Titanium Carbon Nitride) coating, this tap delivers extended wear resistance and reduced friction in abrasive or tough materials. The right-hand spiral flute geometry pulls chips up and out of the hole, reducing the risk of chip packing in blind-hole applications. Overall length is 3.54 inches.

This tap is suited for machine tapping operations in CNC machining centers, drill presses, and tapping heads where consistent thread quality in difficult-to-machine materials is required. The H3 thread limit provides a controlled fit appropriate for standard 2B tolerance requirements. With a 15-degree helix angle and right-hand flute direction, it is intended for production environments where tool life and thread accuracy in ferrous and exotic alloys are priorities. Package quantity is one piece per unit.

Key Features

• 6-32 UNC thread form with 2B class of fit and H3 thread limit
• Modified bottoming chamfer for threading near the bottom of blind holes
• Powdered metal construction with TICN coating for extended tool life in hard and abrasive materials
• Right-hand spiral flute geometry aids chip evacuation in blind-hole applications
• 15-degree helix angle optimized for materials including stainless steel, titanium, and high-nickel alloys
• No coolant-through requirement — suitable for flooded or mist coolant delivery

Compatibility

Designed for machine tapping of 6-32 UNC threads in alloy steel, stainless steel, hardened steel, titanium, and high-nickel alloys. Part of the OSG EXOTAP 313 series.

Installation Notes

Installation is performed by qualified machinists using CNC equipment, drill presses, or dedicated tapping machines. Ensure the workpiece is securely fixtured and the spindle is properly aligned before tapping. Power down and de-energize all equipment before changing tooling. Follow applicable shop safety procedures and manufacturer recommended speeds and feeds for the specific workpiece material.
