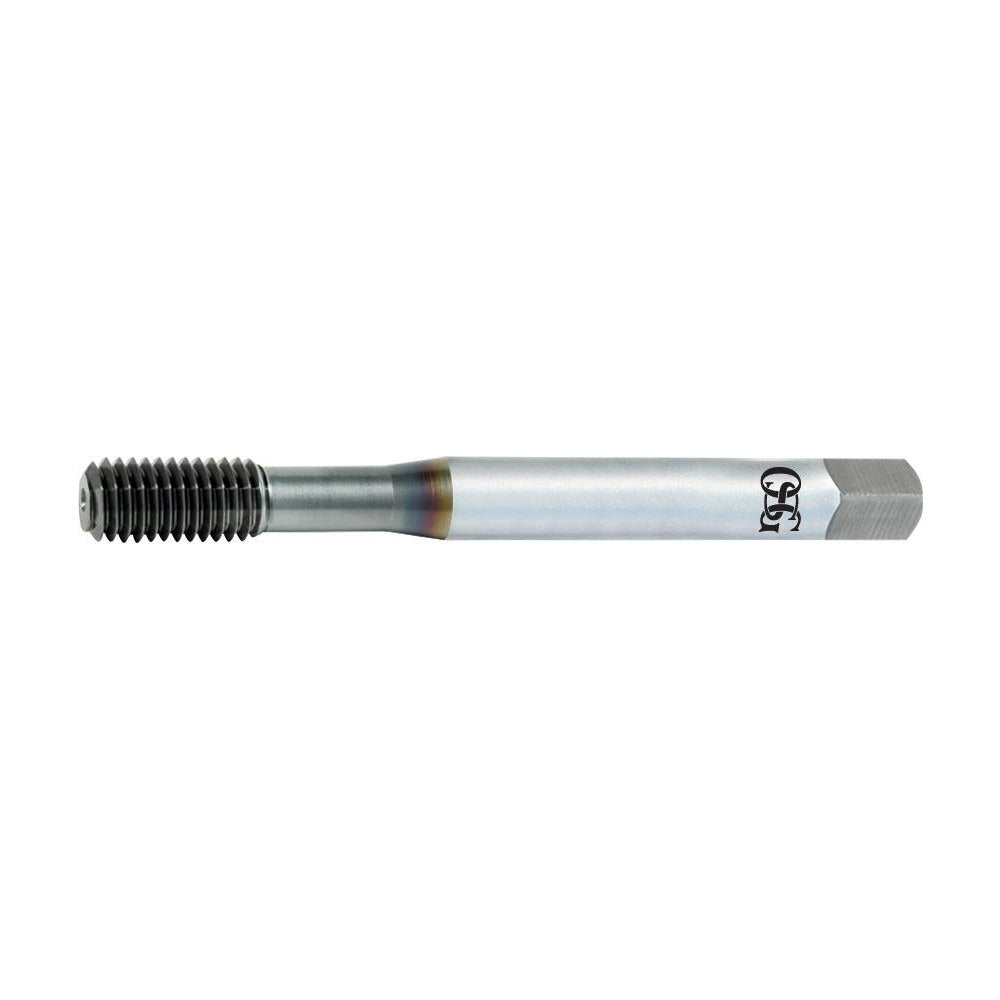

Osg 1410105001 Thread Forming Tap M10x1.50 Metric Coarse

Product Description

The OSG 1410105001 is a thread forming tap in the HY-PRO NRT series, designed to cold-form M10x1.50 metric coarse internal threads without cutting or producing chips. Built from cobalt high-speed steel and finished with a steam oxide coating, this tap generates threads by displacing material rather than removing it, resulting in stronger thread forms and longer tool life in production environments. The modified bottoming chamfer with 2 to 2.5 chamfered threads allows threading close to the bottom of blind holes. It carries a D6 thread limit and a 4H class of fit, making it suitable for precision metric threading applications in machining and fabrication work.

This tap is suited for blind hole threading operations across a broad range of metallic workpiece materials. It is used in CNC machining centers, drill presses, and tapping machines in both job shop and production environments. Licensed machinists, tooling specialists, and precision manufacturers select this tap when chipless thread forming is required, particularly where thread strength and hole integrity are critical. It is not designed for coolant-through delivery.

Key Features

• Thread forming design eliminates chips, reducing the risk of chip packing in blind holes
• Cobalt construction provides elevated heat and wear resistance in demanding materials
• Steam oxide coating reduces friction and improves lubrication retention during tapping
• Modified bottoming chamfer allows threading close to the bottom of blind holes
• D6 thread limit with 4H class of fit for precise metric thread tolerance control
• Right-hand thread direction, compatible with standard tapping machine setups

Compatibility

Designed for use in alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel workpieces. Suitable for blind hole threading applications requiring M10x1.50 metric coarse internal threads.

Installation Notes

Thread forming taps should be installed by qualified machinists familiar with tapping speed, torque, and lubrication requirements for the workpiece material. Use an appropriate tapping fluid or cutting oil for the specific material being tapped. Ensure the machine spindle is properly aligned with the hole axis before engaging the tap to prevent tap breakage or thread distortion. Always consult applicable machining standards and tooling guidelines for feeds and speeds specific to the material and machine type.
