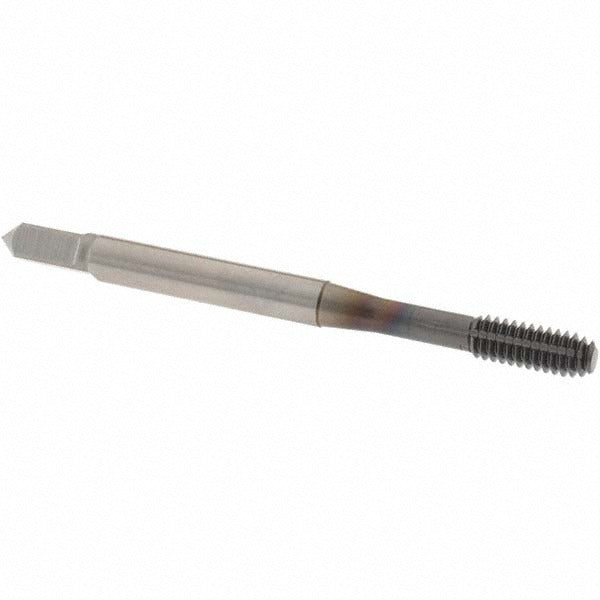

Osg 1405004408 Thread Forming Tap 8-32 Unc Modified Bottoming

Product Description

The OSG 1405004408 is a thread forming tap designed for producing 8-32 UNC internal threads without cutting or chip generation. Thread forming taps displace material rather than remove it, resulting in stronger threads with a better surface finish. This tap features a modified bottoming chamfer with 2 to 2.5 chamfered threads, allowing it to thread closer to the bottom of a blind hole. Built from powdered metal high-speed steel and finished with a TiCN coating, it delivers extended tool life and heat resistance in demanding production and maintenance applications. Licensed machinists and toolroom technicians are the primary users.

This tap is suited for blind hole threading operations across a wide range of materials including alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel. The EXOTAP VP-NRT series is engineered for use where chip evacuation is a concern, making it a reliable choice for CNC tapping centers, drill presses, and manual tapping operations in both production shop and field-maintenance environments. Right-hand thread direction is standard. No coolant-through capability is required for typical use cases.

Key Features

• Thread forming design eliminates chips, reducing the risk of chip packing in blind holes
• Modified bottoming chamfer (2 to 2.5 threads) allows threading near the bottom of a blind hole
• Powdered metal high-speed steel construction provides consistent grain structure and increased toughness
• TiCN coating improves surface hardness and reduces friction across ferrous and non-ferrous materials
• H3 thread limit and Class 3B fit for close-tolerance thread production
• Right-hand thread direction, compatible with standard tapping equipment

Compatibility

Designed for blind hole threading of 8-32 UNC threads in alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel workpieces. Material application codes P, M, and N apply.

Installation Notes

Thread forming taps require a properly sized forming tap drill hole, which is larger than the equivalent cutting tap drill size — consult the tap manufacturer drill chart for the correct hole diameter before use. Power down and secure the workpiece before beginning any tapping operation. Use an appropriate tapping fluid or cutting oil for the workpiece material to maximize tap life and thread quality. Inspect the tap for wear or chipping before each use and replace if damaged to avoid thread quality issues.
