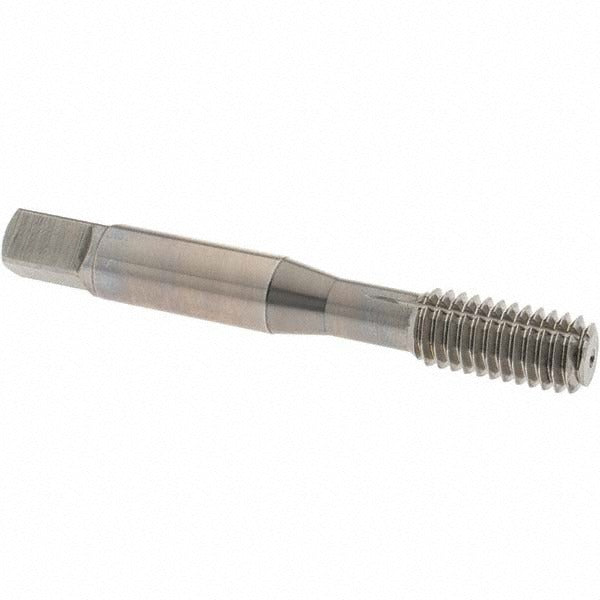

Osg 1400134500 Thread Forming Tap 3/8-16 Unc Bottoming

Product Description

The OSG 1400134500 is a thread forming tap in the HY-PRO NRT series, designed for cold-forming internal threads in blind holes without cutting chips. Built from cobalt high-speed steel with a bright finish, it produces a 3/8-16 UNC right-hand thread to a Class 3B fit at an H5 thread limit. The bottoming chamfer of 1 to 1.5 threads allows threading close to the bottom of a blind hole. Overall length is 2.9380 inches with a tapping depth of 1.2520 inches. Machinists and tool-room professionals install this tap in CNC machining centers, knee mills, and drill presses where chip-free threading is required.

This tap is suited for blind-hole threading applications across a range of ferrous and non-ferrous workpiece materials. Typical applications include production machining of structural components, dies, and fastener receiving holes in alloy steel, carbon steel, die steel, hardened steel, aluminum, and stainless steel. The cold-forming action displaces material rather than cutting it, producing stronger threads with improved surface finish compared to cut taps. It is appropriate for both job-shop and production environments where tight thread tolerances are required.

Key Features

• Thread forming action eliminates chips, reducing clogging risk in blind holes
• Cobalt construction improves heat and wear resistance compared to standard HSS
• Bottoming chamfer (1 to 1.5 threads) allows threading to near full depth in blind holes
• H5 thread limit holds Class 3B fit for tight-tolerance assemblies
• Compatible with alloy steel, carbon steel, die steel, hardened steel, aluminum, and stainless steel
• Right-hand thread direction, no coolant-through requirement

Compatibility

Designed for blind-hole thread forming applications in alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel workpieces requiring a 3/8-16 UNC Class 3B internal thread.

Installation Notes

This tap is installed by machinists using a tap wrench, tapping head, or CNC rigid tapping cycle. Ensure the spindle speed and feed rate are set to the tap manufacturer's recommendation for the workpiece material before starting. Use an appropriate tapping fluid or cutting oil to reduce heat buildup and extend tap life. Always back the tap out fully before removing the workpiece from the fixture to avoid breakage.
