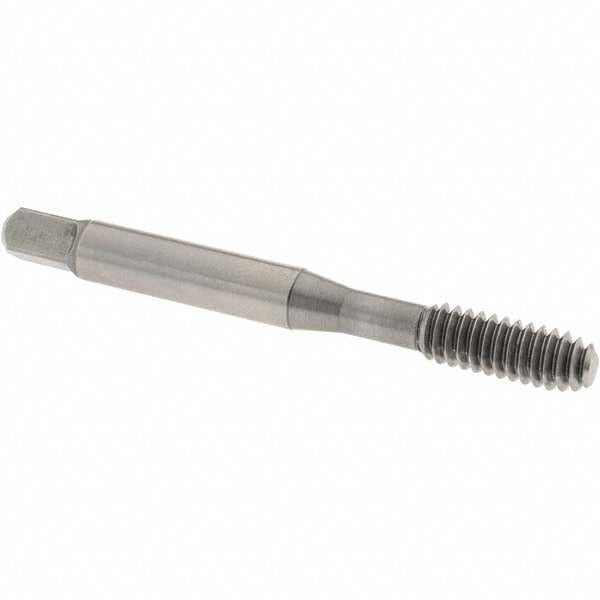

Osg 1400126300 Thread Forming Tap 1/4-20 Unc Cobalt

Product Description

The OSG 1400126300 is a thread forming tap designed for cold-forming internal threads in ductile metals without cutting or producing chips. Sized for 1/4-20 UNC threads, this tap features a modified bottoming chamfer with 2 to 2.5 chamfered threads, making it well suited for blind hole threading applications where the formed thread must extend close to the bottom of the hole. Constructed from cobalt high-speed steel with a bright finish, it delivers added heat and wear resistance compared to standard HSS taps. The H5 thread limit designation ensures consistent tolerance control for precision threading work.

This tap is intended for use in blind hole threading operations across a range of ferrous and non-ferrous materials. Rated material applications include alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel. It is commonly used in machine shop, maintenance, and production environments where chipless thread forming is preferred to reduce the risk of chip contamination or tap breakage. Right-hand thread direction is standard.

Key Features

• Modified bottoming chamfer with 2 to 2.5 chamfered threads for threading close to the bottom of blind holes
• Cobalt high-speed steel construction for improved heat resistance and tool life in tough materials
• H5 thread limit for consistent tolerance control in precision applications
• Chipless thread forming process eliminates chip contamination risk in blind holes
• Compatible with alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel
• Right-hand thread direction, no coolant-through feature

Compatibility

Designed as an OEM-style replacement or direct-use thread forming tap for 1/4-20 UNC blind hole threading applications in materials with material application codes P and N, as defined by OSG HY-PRO NRT Series 14001.

Installation Notes

Thread forming taps should be installed and operated by qualified machinists or tooling professionals familiar with tapping speed, feed rate, and lubricant requirements for the workpiece material. Always ensure the spindle and workpiece are secure before beginning the tapping operation. Use an appropriate cutting or forming fluid matched to the material being tapped. Never force a tap that has stalled, as this may result in breakage and potential workpiece damage.
