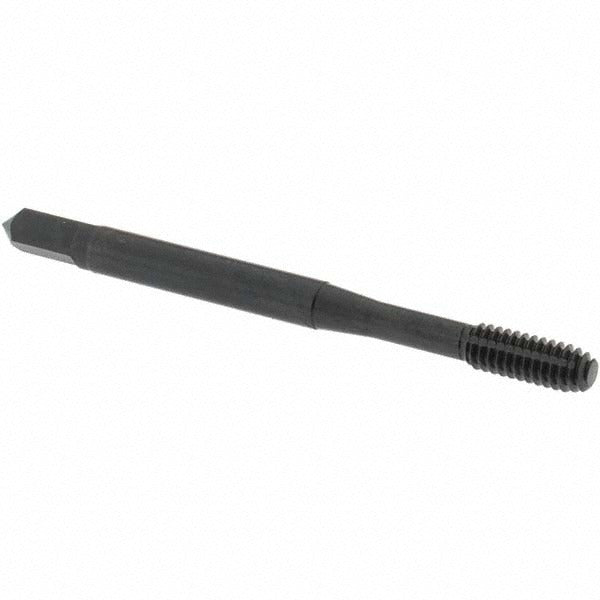

Osg 1400114301 Thread Forming Tap 8-32 Unc Modified Bottoming

Product Description

The OSG 1400114301 is a thread forming tap designed for cutting 8-32 UNC internal threads in blind hole applications. Part of the HY-PRO NRT series, it uses a modified bottoming chamfer with 2 to 2.5 chamfered threads, allowing threading close to the bottom of a blind hole. The tap is manufactured from cobalt high-speed steel and finished with a steam oxide coating for improved lubricity and wear resistance. It carries a Class 3B thread fit with an H3 thread limit, making it suitable for precision threading work. At 2.125 inches overall length and 0.168 inches shank diameter, it fits standard tap holders used in machining and fabrication environments.

This tap is suited for threading alloy steel, carbon steel, die steel, hardened steel, aluminum, and stainless steel workpieces. It is used in blind hole threading operations where a standard plug tap cannot reach the required depth. Typical applications include production machining, tool-and-die work, and precision fabrication where 8-32 UNC threads must be formed close to the bottom of a drilled hole. Right-hand thread direction applies. The cobalt construction supports use on harder and more abrasive materials where standard high-speed steel taps wear prematurely.

Key Features

• Modified bottoming chamfer with 2 to 2.5 chamfered threads for near-bottom blind hole threading
• Cobalt high-speed steel construction for durability on alloy steel, hardened steel, and stainless steel
• Steam oxide coating improves lubricity and reduces galling during thread forming
• H3 thread limit, Class 3B fit for precision tolerance control
• Right-hand thread direction, 32 threads per inch, 8-32 UNC specification
• No coolant-through feature; suited for use with cutting fluid applied externally

Compatibility

Designed for blind hole threading in alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel workpieces requiring 8-32 UNC internal threads to Class 3B fit standards.

Installation Notes

Thread forming taps should be installed by machinists or tool-and-die professionals using a properly sized tap holder or CNC tapping attachment. Power down and secure the workpiece before starting. Use appropriate cutting fluid for the workpiece material to reduce heat and extend tap life. Verify pilot hole diameter against the recommended tap drill size for 8-32 UNC thread forming before beginning the operation.
