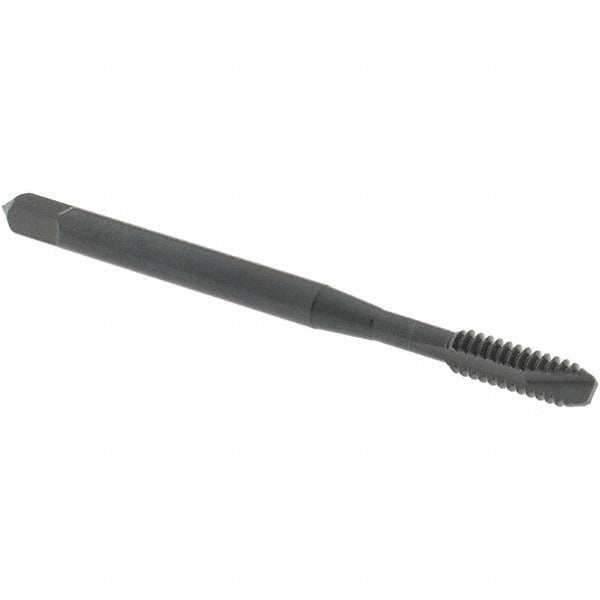

Osg 1212501 Spiral Point Tap 6-32 Unc 2 Flute Bottoming

Product Description

The OSG 1212501 is a spiral point tap designed for cutting right-hand internal threads in a wide range of metallic workpiece materials. Built from high-speed steel with a steam oxide coating, this tap produces 6-32 UNC threads to a 2B class of fit with an H3 thread limit. The bottoming chamfer style allows threading close to the bottom of a blind hole. With a 2-inch overall length and an 11/16-inch thread length, the 1212501 is suited for production and maintenance machining applications where consistent thread form and close-tolerance fit are required. Machinists and toolroom professionals are the primary users.

This tap is intended for use on a broad range of materials including aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, high-carbon steel, and hardened steel. The bottoming chamfer makes it appropriate for blind-hole applications where thread engagement must extend to near the bottom of the drilled hole. It is used in manual tapping, CNC machining centers, and drill press operations where the 6-32 UNC thread standard is specified. Coolant-through is not supported by this tap.

Key Features

• 6-32 UNC right-hand thread form with 2B class of fit
• Bottoming chamfer for threading close to the bottom of blind holes
• H3 thread limit for controlled tolerance in production environments
• High-speed steel construction for durability across a wide material range
• Steam oxide coating reduces friction and provides mild corrosion resistance
• 2 flutes support chip evacuation in typical tapping applications

Compatibility

Designed as an OEM-style replacement and standard production tap for applications requiring 6-32 UNC internal threads machined to a 2B class of fit in materials including aluminum, cast iron, and carbon steels.

Installation Notes

Tap installation should be performed by a qualified machinist following standard tapping procedures. Use the correct tap drill size for 6-32 UNC threads before starting the tap, and ensure the workpiece is securely fixtured. Apply cutting fluid appropriate for the workpiece material to reduce heat and extend tool life. For bottoming taps in blind holes, use a plug or taper tap first to establish the thread before finishing with this bottoming tap.
