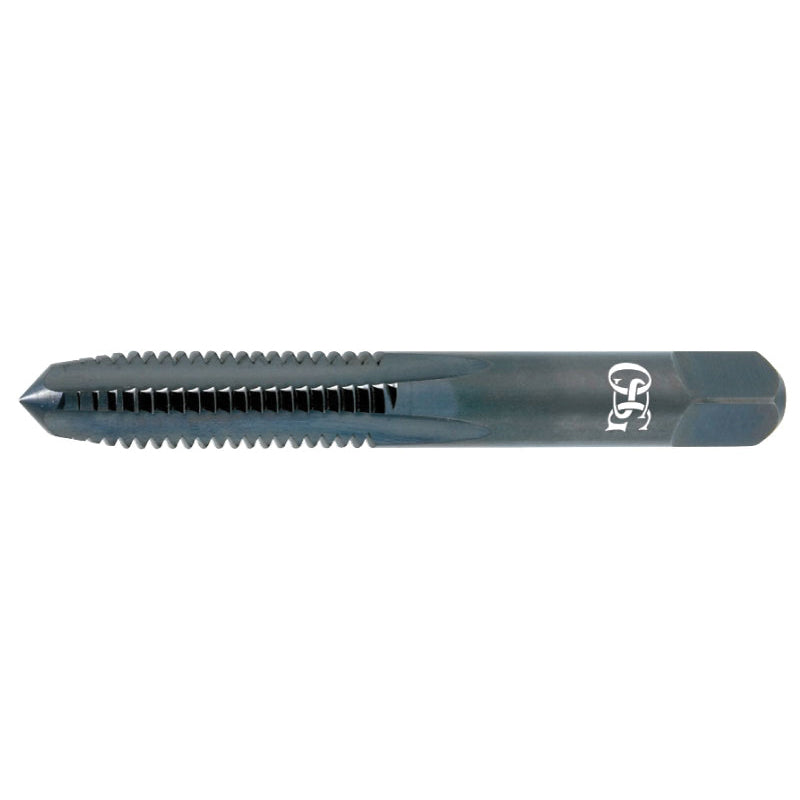

OSG 1122501 101 General Purpose Straight Flute Hand Tap, Right Hand Cutting, 1/2-13 Thread, H3 Thread Limit, 3.5P-4.5P Plug Chamfer

Product Description

The OSG Straight Flute Hand Tap with MPN 1122501 is designed for general threading tasks. This tool features a right-hand cutting design, suitable for a variety of materials including aluminum alloy, cast aluminum, cast iron, and carbon steel.

• HSS construction for enhanced wear resistance.
• Utilizes a 3.5P-4.5P plug chamfer for effective tapping.
• Contains four flutes for optimal material removal.

Product Highlights

This hand tap is part of the general purpose series and includes features like an imperial measurement system, making it ideal for both novice and professional users.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Type: General Purpose
• Series: 101
• Material: HSS
• Thread Size: 1/2-13
• Chamfer Type: 3.5P-4.5P Plug
• Shank Length: 1-17/32 inches
• Thread Limit: H3
• Thread Length: 1.153 inches
• Finish/Coating: Steam Oxide
• Overall Length: 3.37 inches
• Shank Diameter: 0.367 inches
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant (Yes/No): No
