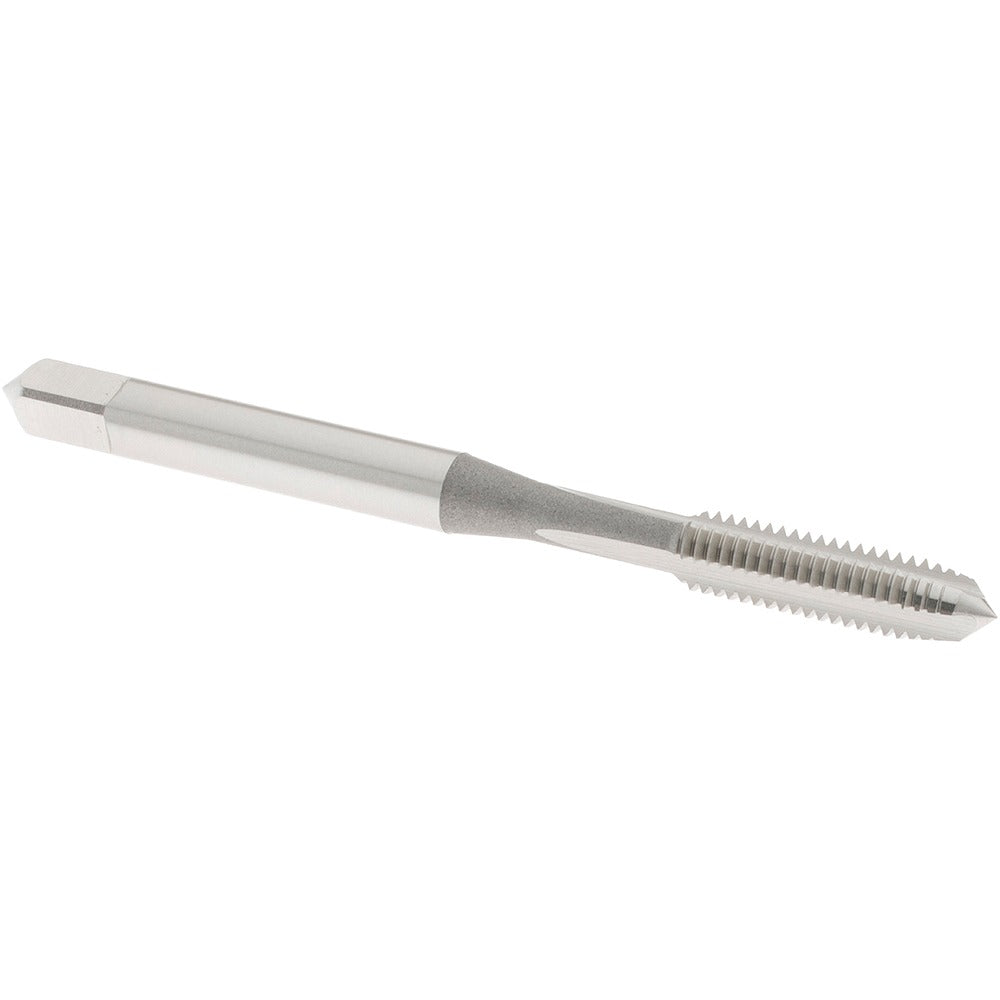

Osg 1046000 Straight Flute Tap 10-32 Unf Hss Plug

Product Description

The OSG 1046000 is a straight flute tap designed to cut internal threads in a range of ferrous and non-ferrous materials. Built from high-speed steel with a bright/uncoated finish, this plug-chamfer tap produces 10-32 UNF right-hand threads to a 3B class of fit with an H2 thread limit. It features 3 flutes, an overall length of 2.375 inches, and a thread length of 0.875 inches. This tap is suited for machine tapping and hand tapping operations where a general-purpose plug chamfer is the appropriate starting geometry. Machinists, maintenance mechanics, and tool room personnel are the primary users.

This tap is used in production and maintenance environments for threading holes in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel. The plug chamfer - typically 3 to 5 threads of taper - makes it the standard choice when tapping through holes or blind holes where sufficient depth allows the chamfer to clear. It is appropriate for use in manual tapping handles or standard tapping heads on drill presses and machining centers without coolant-through capability.

Key Features

• 10-32 UNF thread form, right-hand direction, 3B class of fit
• H2 thread limit for controlled tolerance in standard fit applications
• Plug chamfer geometry suits both through holes and deep blind holes
• High-speed steel construction provides good wear resistance across a wide range of workpiece materials
• Bright/uncoated finish - no coating buildup to affect thread tolerance
• 3 straight flutes channel chips without a helical path, keeping the tap stable in short-chipping materials

Compatibility

Compatible workpiece materials include aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel as specified by the manufacturer. OSG Series 103.

Installation Notes

Secure the workpiece fully before tapping to prevent movement under cutting load. Use an appropriate cutting fluid for the workpiece material - sulfurized oil for steel, kerosene or light oil for aluminum - to extend tap life and improve thread finish. Align the tap squarely with the drilled hole before applying torque; misalignment is the leading cause of tap breakage with small-diameter taps. When tapping by hand, periodically reverse direction to break and clear chips.
