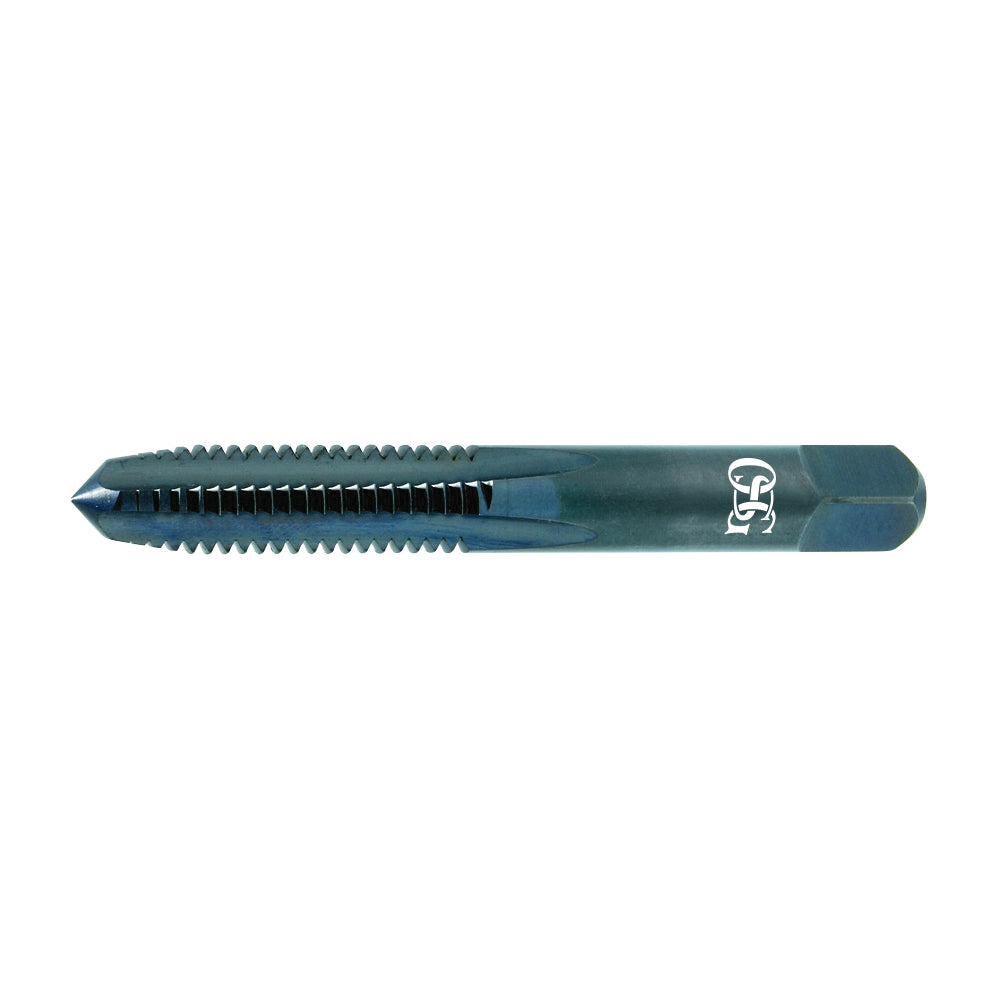

OSG 1024901 General Purpose Straight Flute Hand Tap Right Hand Cutting #10-24 Thread H3 Thread Limit

Product Description

The OSG 1024901 is a general-purpose straight flute hand tap designed for right-hand cutting applications. This tap is ideal for threading materials such as aluminum alloy, cast iron, and carbon steel. It features a #10-24 thread size and is designed to meet an H3 thread limit. The tap includes a 3.5P-4.5P plug chamfer and is made of HSS material with a steam oxide finish.

• HSS construction for improved wear resistance
• Designed for both blind and through-hole applications
• 4 flutes for efficient cutting

Product Highlights

This tap is suitable for a variety of metal materials and is a robust choice for general threading tasks.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Type: General Purpose
• Series: 102
• Material: HSS
• Thread Size: #10-24
• Chamfer Type: 3.5P-4.5P Plug
• Shank Length: 1-5/16 in
• Thread Limit: H3
• Thread Length: 0.618 in
• Finish/Coating: Steam Oxide
• Overall Length: 2.37 in
• Shank Diameter: 0.194 in
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant (Yes/No): No
