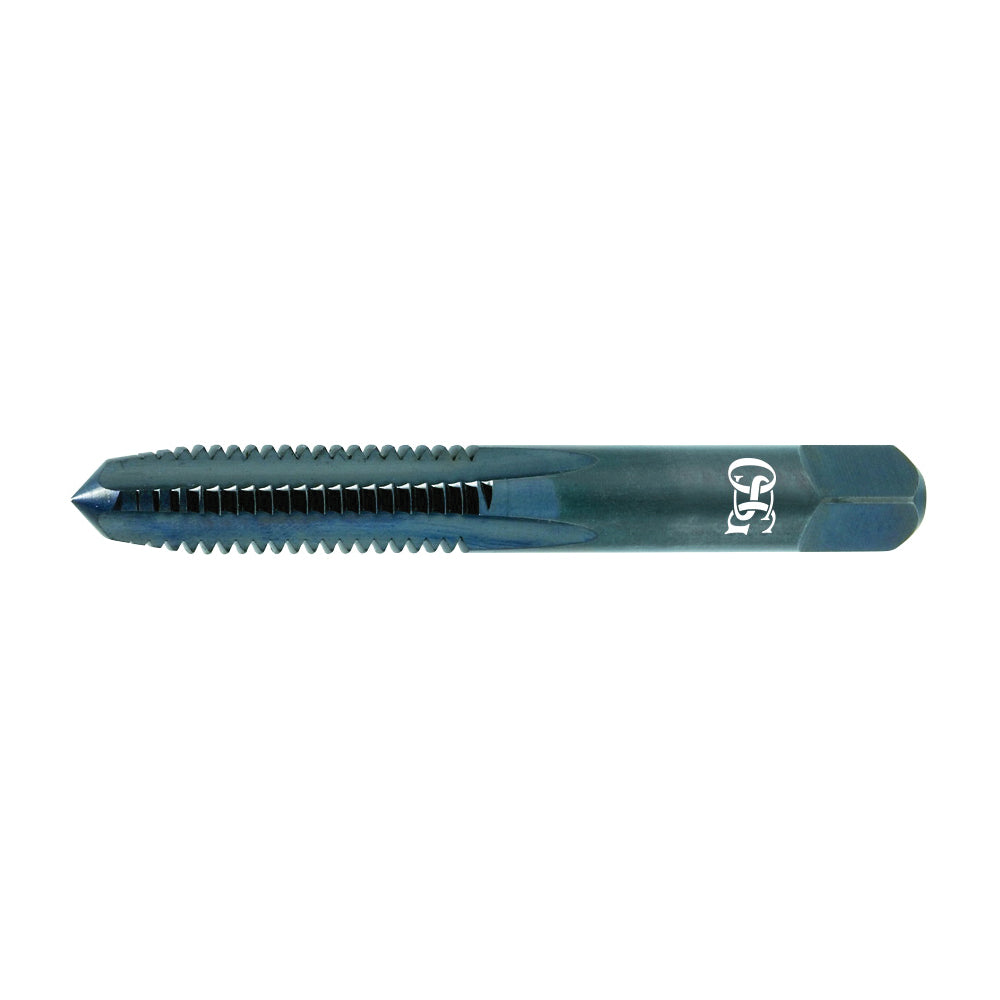

OSG 1024400 General Purpose Straight Flute Hand Tap Right Hand Cutting #8-32 Thread H3 Thread Limit 1.5P-2P Bottoming

Product Description

OSG 1024400 is a general-purpose straight flute hand tap designed for threading applications. This right-hand cutting tap features a thread size of #8-32 and is made of high-speed steel (HSS) for increased wear resistance. The tap has a thread length of four hundred sixty-eight thousandths of an inch and an overall length of two point twelve inches.

• Manufactured from HSS for durability
• Designed for both blind and through-hole applications
• Includes a 1.5P-2P bottoming chamfer suitable for various materials

Product Highlights

This tap series offers exceptional value for threading in aluminum, cast iron, and other ferrous and non-ferrous metals.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: MX

Technical Specifications

• Type: General Purpose
• Series: 102
• Material: HSS
• Thread Size: #8-32
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-5/32 in
• Thread Limit: H3
• Thread Length: 0.468 in
• Finish/Coating: Bright
• Overall Length: 2.12 in
• Shank Diameter: 0.167 in
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
