Orbit SDB-2 Multigang Deep Switch Box (2-1/2 in Deep, 2-Gang)

Product Description

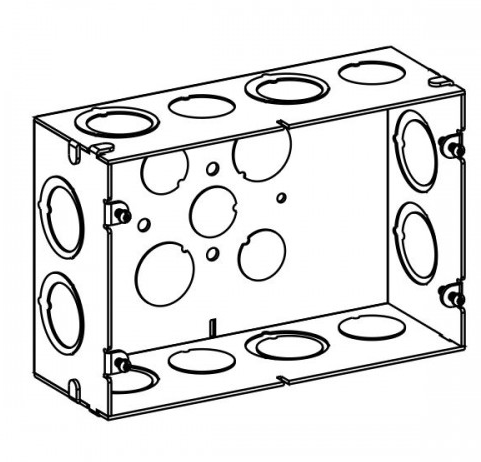

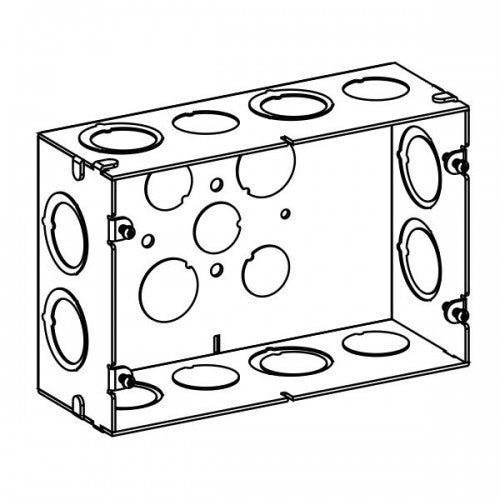

The Orbit SDB-2 is a 2-gang multigang deep switch box with a 2-1/2 in depth and 70.0 cubic inch internal capacity. It is constructed from 16 gauge sheet steel with a galvanized finish and provides multiple knockouts for 1/2 in and 3/4 in conduit on the sides and bottom. The box is intended for mounting switches or other devices in multi-gang electrical installations.

• 16 gauge sheet steel construction with galvanized finish
• Internal capacity 70.0 cu in; dimensions 6-13/16 in x 4-9/16 in x 2-1/2 in
• Multiple knockouts: sides (4) 3/4 in, (8) 1/2 in & 3/4 in MKO; bottom (3) 1/2 in, (2) 3/4 in

Product Highlights

2-gang, 2-1/2 in deep switch box; 70.0 cu in capacity; multiple 1/2 in and 3/4 in knockouts; 16 GA steel, galvanized finish.

Product Information

Standard Information

• Brand: ORBIT
• Manufacturer Part Number: SDB-2
• Country of Origin: United States

Technical Specifications

• Brand: Orbit
• MPN: SDB-2
• Model: SDB-2
• Type: Electrical switch box
• Number of gangs: 2
• Depth: 2-1/2 in
• Internal capacity (cu in): 70.0
• Material: 16 GA sheet steel
• Finish: Galvanized
• Dimensions (W x H x D): 6-13/16 in x 4-9/16 in x 2-1/2 in
• Knockouts (sides): (4) - 3/4 in; (8) - 1/2 in & 3/4 in MKO
• Knockouts (bottom): (3) - 1/2 in; (2) - 3/4 in
• Country of Origin: China
• Condition: New
