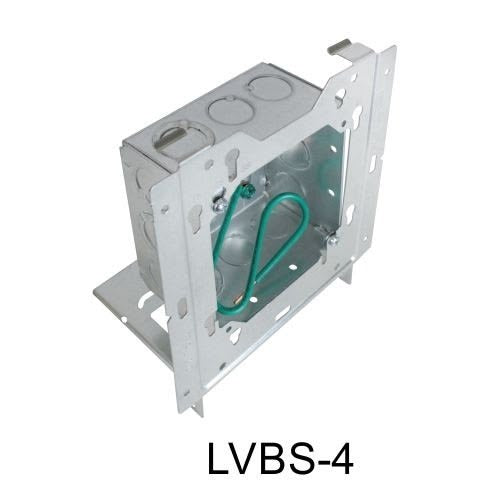

Orbit LVBS-4 UMA-LVBS square box with device ring 1 pack 4SDB-MKO-PT-10

Product Description

The Orbit LVBS-4 is a preassembled UMA-LVBS square electrical box with device ring designed for switch and receptacle rough-ins. It mounts direct to open or closed stud faces or snaps onto SSB-T5 for stud-to-stud installation and includes far-side back support. The 4 by 4 inch, 2-1/8 inch deep box provides 30.3 cubic inches of capacity and includes a 10-32 ground screw and a 10 inch solid copper #12 AWG pigtail.

• Sheet steel construction with galvanized finish and preassembled device ring.
• Box dimensions: 4 in width x 4 in height x 2-1/8 in depth; 30.3 cubic inches capacity.
• Mounting direct-to-stud or snaps onto SSB-T5; includes far-side back support, centerline cutouts, and top notch for set screw access.

Product Highlights

Preassembled square box for switch and receptacle rough-ins; includes ground screw and 10 in #12 AWG pigtail; configured as UMA-LVBS + 4SDB-MKO-PT-10.

Product Information

Standard Information

• Brand: ORBIT
• Manufacturer Part Number: LVBS-4
