Orbit Industries OF7711 1/2 Inch Steel EMT Couplings Set-Screw Type

Product Description

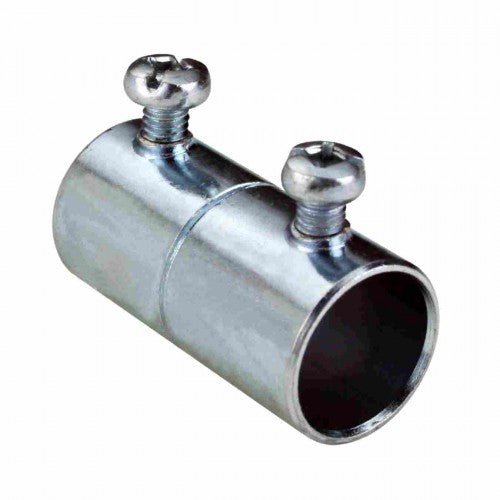

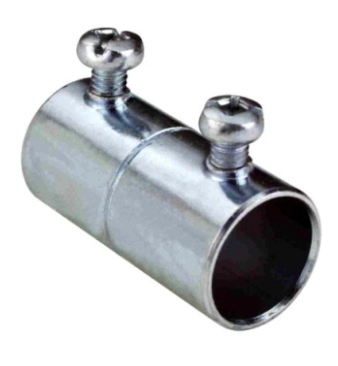

The ORBIT INDUSTRIES OF7711 is a 1/2 inch steel EMT coupling, designed as a set-screw type connector. It is used in dry locations to join two EMT conduits, extending the raceway while providing mechanical protection. Constructed from zinc electro-plated steel, this coupling ensures a secure connection and is concrete-tight when taped. It is suitable for applications above 600V and is UL approved for Canada and US.

• Set-screw type for secure connections of EMT, IMC, and Rigid conduits.
• Constructed from zinc electro-plated steel, offering durability and mechanical protection.
• Concrete-tight when taped, suitable for dry locations and applications above 600V.

Product Highlights

Connects two EMT conduits, providing mechanical protection and extending raceway.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: OF7711
• Country of Origin: China

Technical Specifications

• Brand: Orbit Industries
• MPN: OF7711
• Type: Set Screw
• Trade Size: 1/2 Inch
• Material: Zinc Electroplated Steel
• Conduit Compatibility: IMC/Rigid/EMT Conduit
• Category: Conduit Couplings
• Flexibility: Rigid
• Finish: Zinc Electro-Plated
• Concrete Tight: when Taped
• Voltage Suitability: Suitable for applications above 600V
• UNSPSC: 39131707
• Approval: UL (Canada and US)
• Diameter: 0.732 Inch
• Length: 1.614 Inch
• Screw Size: #12-24 UNC x 0.3 Inch FHCP
• Item Code: 1257336
• UL File Number: E310660
