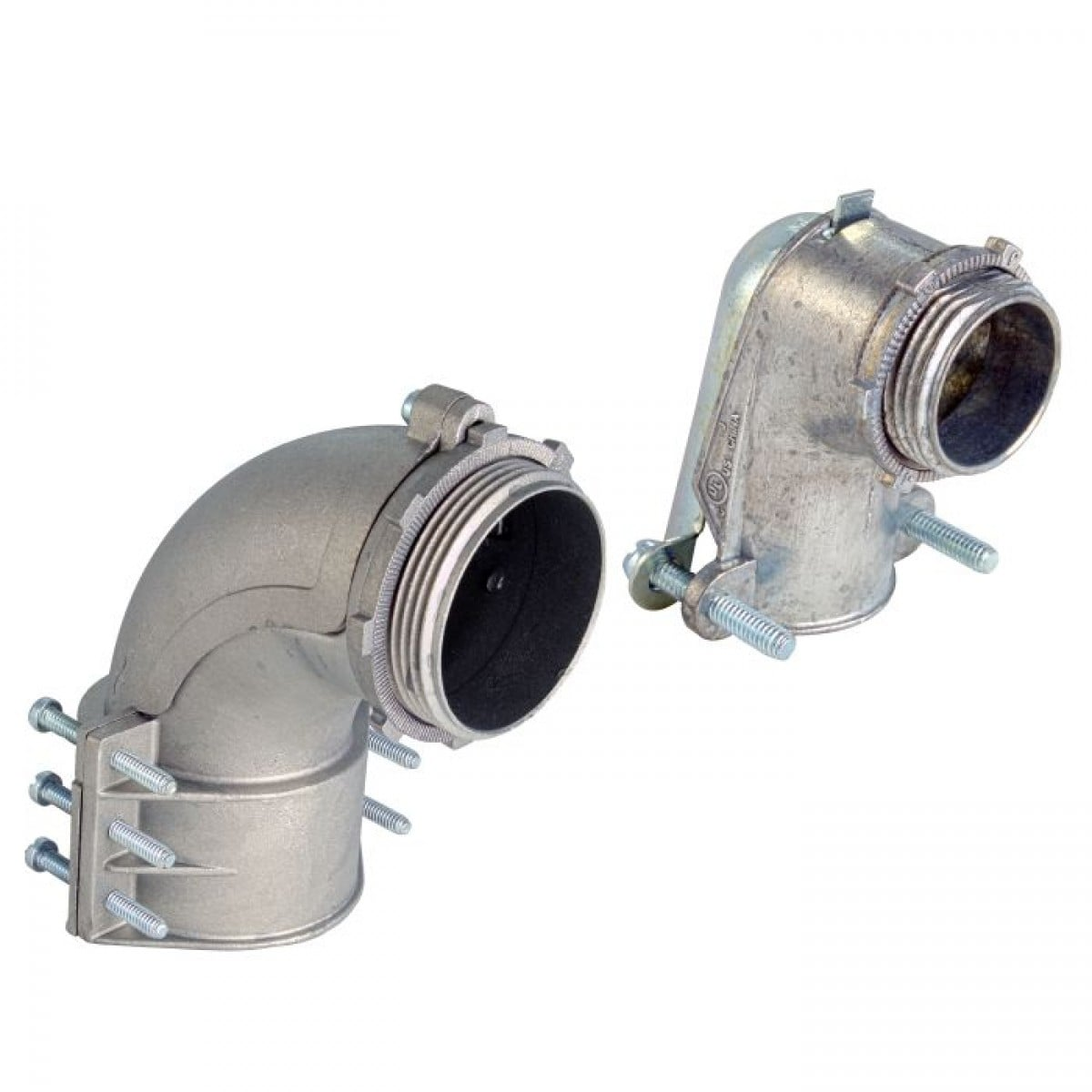

Orbit Industries OF6464 90 Degree Angle Flex Connector

Product Description

The ORBIT INDUSTRIES OF6464 is a 90-degree angle, squeeze-type flexible metal conduit connector used in dry-location electrical installations. It bonds flexible metal conduit (FMC) to electrical boxes or enclosures, maintaining a secure mechanical and grounding connection at the termination point. Built from zinc, this connector provides rugged metallic construction that protects the conduit and the junction box or enclosure from physical stress at the connection point. The 1-1/4 inch trade size fits standard FMC of the corresponding diameter. Electricians rely on this type of connector where conduit must enter a box at a right angle, reducing bend radius and saving space in tight enclosures.

This connector is intended for use in dry locations only, making it appropriate for indoor commercial and residential electrical work. Typical applications include terminating flexible metal conduit runs to junction boxes, panel enclosures, or equipment knockouts where a 90-degree entry angle is required. The squeeze-type design allows the connector to be secured to the conduit without additional tools beyond standard hand tools, speeding up termination in production installs.

Key Features

• 90-degree angle entry reduces bend radius at box terminations
• Squeeze-type design for straightforward conduit attachment
• Zinc construction provides durable metallic mechanical protection
• Bonds flexible metal conduit to boxes or enclosures for grounding continuity
• 1-1/4 inch trade size fits corresponding FMC diameter
• Rated for dry locations only

Compatibility

Designed as an OEM-style fitting for 1-1/4 inch trade size flexible metal conduit terminations at standard electrical boxes and enclosures in dry-location installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits in the affected panel or enclosure before beginning work. Insert the flexible metal conduit into the connector body and tighten the squeeze fitting to secure the conduit mechanically. Confirm that bonding continuity is maintained through the connector to the box or enclosure per applicable NEC requirements. This connector is not rated for wet or damp locations.

Technical Specifications

• Trade Size: 1-1/4 inches
• Connector Type: 90-Degree Angle Squeeze
• Material: Zinc
• Location Rating: Dry locations only
• UPC: 835243050037

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: OF6464
