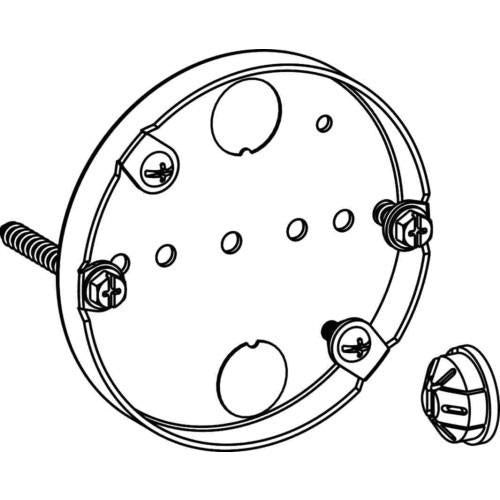

Orbit Industries FS4PB Sheet Steel Ceiling Fan Support Pancake Box 4-inch x 1/2-inch

Product Description

The Orbit Industries FS4PB is a round ceiling fan support pancake box, constructed from 16-gauge sheet steel. It measures 4 inches in diameter and 1/2 inch deep, offering a 5.8 cubic inch capacity. This electrical box includes two 1/2-inch knockouts and a push-in NM cable connector. It is UL/cULus listed, RoHS compliant, and meets NEC 314.27 for supporting up to 70 lbs. for ceiling fan or fixture loads, making it suitable for various indoor electrical wiring applications.

• Constructed from 16-gauge sheet steel for durability in electrical installations.
• Features two 1/2-inch knockouts and includes a push-in NM cable connector.
• Complies with NEC 314.27, supporting up to 70 lbs. for ceiling fan or fixture loads.

Product Highlights

UL/cULus listed, RoHS compliant, and NEC 314.27 compliant for fan/fixture support.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: FS4PB

Technical Specifications

• Material: 16 Gauge Sheet Steel
• Standards: UL E227970 Listed, Conforms to UL 514A Listed, cULus Certified, RoHS Compliant
• Diameter: 4 Inch
• Shape: Round
• Number of Knockouts: 2
• Knockout Size: (2) 1/2 Inch
• Cubic Capacity: 5.8 Cubic Inch
• Depth: 0.5 Inch
• Includes: Push-In NM Cable Connector
• UPC: 83524301193
• Energy Star Compliant: No
• UNSPSC: 39121316
• Category: Switch Box
• UL File Number: E227970
• Product Type: Fan Support Box
• Room Type: Indoor
• Specific Uses: Fan
• Water Resistance Level: Not Water Resistant
• Mounting Type: Ceiling Mount
• Required Assembly: No
• ASIN: B09JB5TDQY
