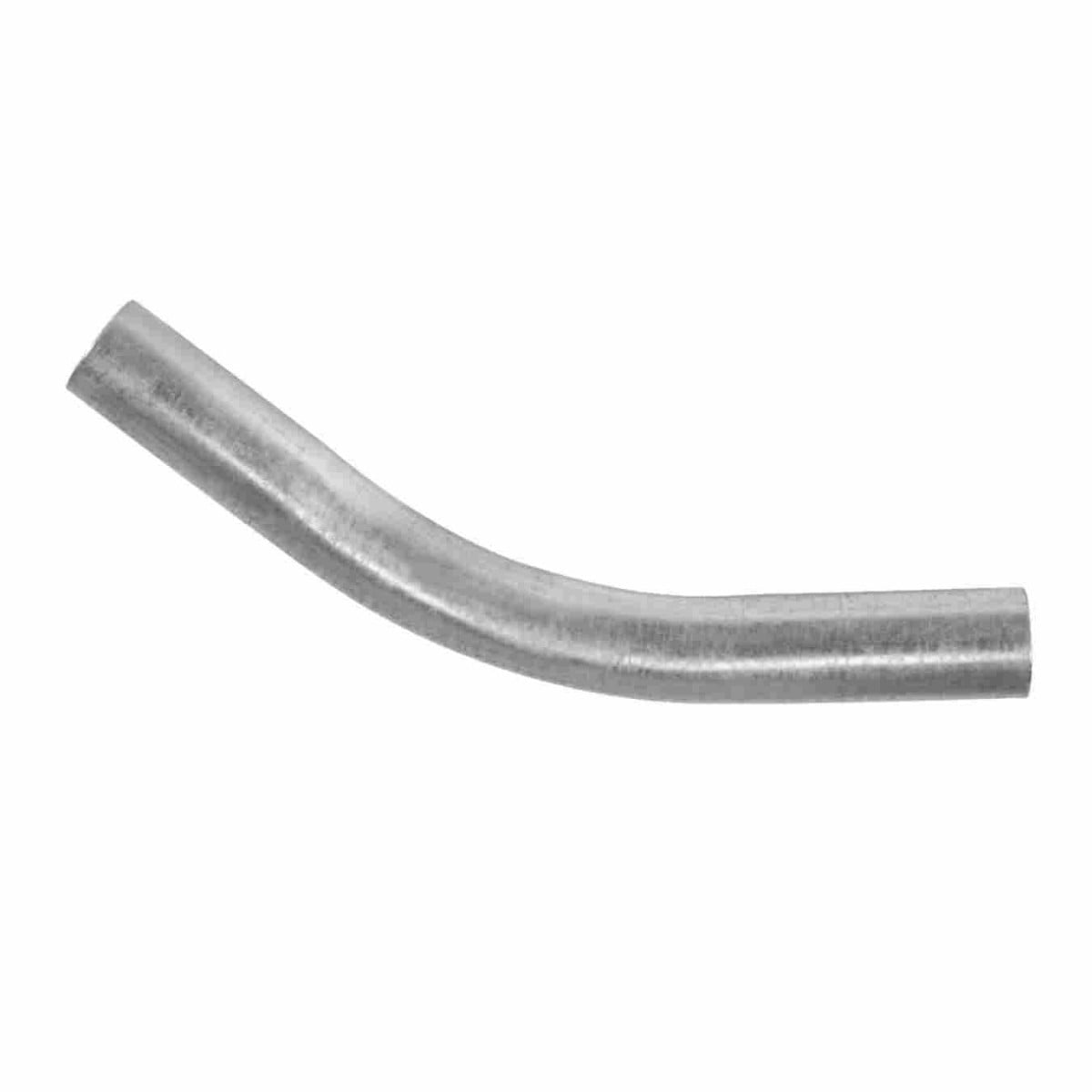

Orbit Industries EEL45-400 Emt Conduit Elbow 45 Degree 4 Inch

Product Description

The ORBIT INDUSTRIES EEL45-400 is a 45-degree EMT conduit elbow sized for 4-inch trade size electrical metallic tubing systems. Manufactured from prime EMT conduit stock in compliance with ANSI C80.3 and UL 797, this elbow provides a reliable directional change in conduit runs. The interior and exterior surfaces are free from defects and feature a smooth welded seam. Hot-dip galvanizing applies a thorough, even zinc coating to both surfaces, providing corrosion resistance suited for demanding installation environments. Licensed electricians and electrical contractors install this fitting as part of raceway systems in commercial and industrial applications.

This 45-degree elbow is used wherever a conduit run requires a mid-angle direction change without the sharper bend of a 90-degree fitting. The 4-inch trade size accommodates larger-diameter EMT conduit runs common in commercial buildings, industrial facilities, and infrastructure projects. It connects standard EMT conduit sections to redirect routing around structural obstacles, through walls, or along ceiling and floor transitions. Typical installations include branch circuit raceways, service entrance conduit runs, and large feeder systems.

Key Features

• Manufactured to ANSI C80.3 and UL 797 specifications for code-compliant EMT installations
• 45-degree bend angle allows gradual directional changes in conduit routing
• 4-inch trade size fits standard 4-inch EMT conduit
• Hot-dip galvanized zinc coating on interior and exterior surfaces for corrosion resistance
• Smooth welded seam interior reduces friction during wire and cable pulling
• Produced from prime EMT conduit stock for consistent dimensional accuracy

Compatibility

Designed as an OEM-style replacement and standard fitting for 4-inch trade size EMT conduit raceway systems installed per NEC requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the affected raceway before beginning conduit work. Use appropriate EMT couplings and connectors rated for the same trade size when joining this elbow to conduit sections. Avoid over-bending or mechanical deformation of the fitting during installation, as this can compromise the galvanized coating and conduit integrity.

Technical Specifications

• Trade Size: 4 inches
• Bend Angle: 45 degrees
• Conduit Type: EMT (Electrical Metallic Tubing)
• Coating: Hot-dip galvanized zinc
• Standard: ANSI C80.3, UL 797
• UPC: 835243053007

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: EEL45-400
