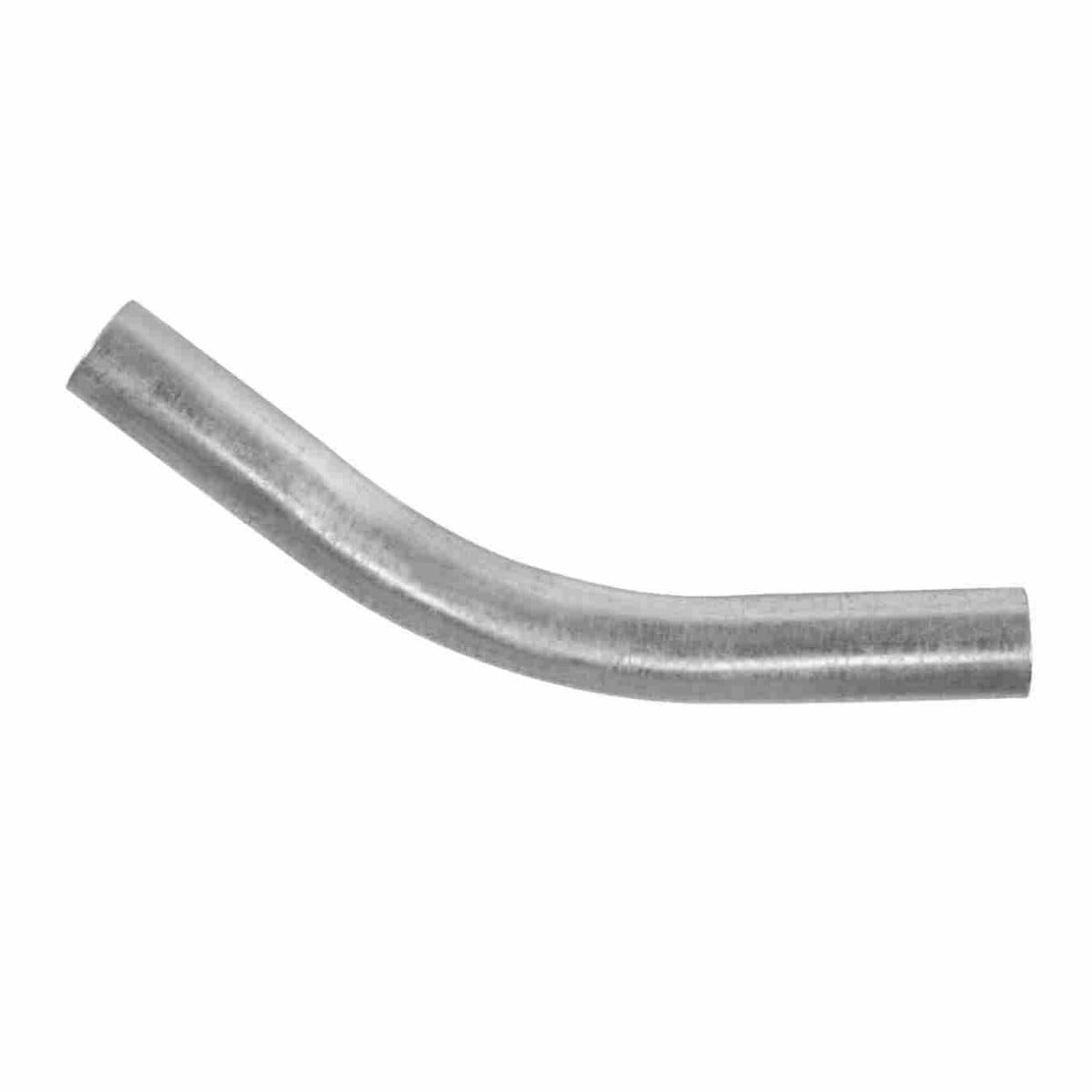

Orbit Industries EEL45-300 Emt Conduit Elbow 45 Degree 3 in

Product Description

The ORBIT INDUSTRIES EEL45-300 is a 45-degree EMT conduit elbow in 3-inch trade size, manufactured from prime EMT conduit stock to ANSI C80.3 (UL797) specifications. It is used to redirect electrical metallic tubing runs at a 45-degree angle within commercial and residential wiring systems. The interior and exterior surfaces are free from defects and feature a smooth welded seam. A hot-dip galvanizing process applies an even zinc coating throughout, providing corrosion resistance suited to standard conduit installations. Licensed electricians and electrical contractors are the primary installers of this fitting.

This elbow fits standard EMT conduit systems in trade sizes ranging from 1/2 inch through 4 inches. The EEL45-300 covers the 3-inch trade size and is suited for routing EMT through walls, ceilings, and structural pathways where a 45-degree directional change is required. It is appropriate for both light commercial and residential electrical distribution applications where EMT conduit is the specified raceway type.

Key Features

• Manufactured to ANSI C80.3 (UL797) specifications for EMT conduit fittings
• Hot-dip galvanized zinc coating on interior and exterior surfaces for corrosion resistance
• Smooth welded seam with defect-free interior surface to protect wire and cable insulation during pull-through
• 45-degree bend angle for standard directional routing of EMT runs
• 3-inch trade size compatible with standard EMT couplings and connectors

Compatibility

Designed as an OEM-style replacement and standard fitting for 3-inch trade size EMT conduit systems installed per ANSI C80.3 (UL797) requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Verify that the conduit system is de-energized before making any connections or modifications to an existing run. Use appropriate conduit benders, couplings, and connectors rated for EMT to complete the assembly. Do not use this elbow with rigid metal conduit or IMC without confirming fitting compatibility.

Technical Specifications

• Trade Size: 3 inches
• Bend Angle: 45 degrees
• Conduit Type: EMT (Electrical Metallic Tubing)
• Standard: ANSI C80.3 (UL797)
• Finish: Hot-dip galvanized zinc coating
• Seam Type: Smooth welded seam
• UPC: 835243052987

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: EEL45-300
