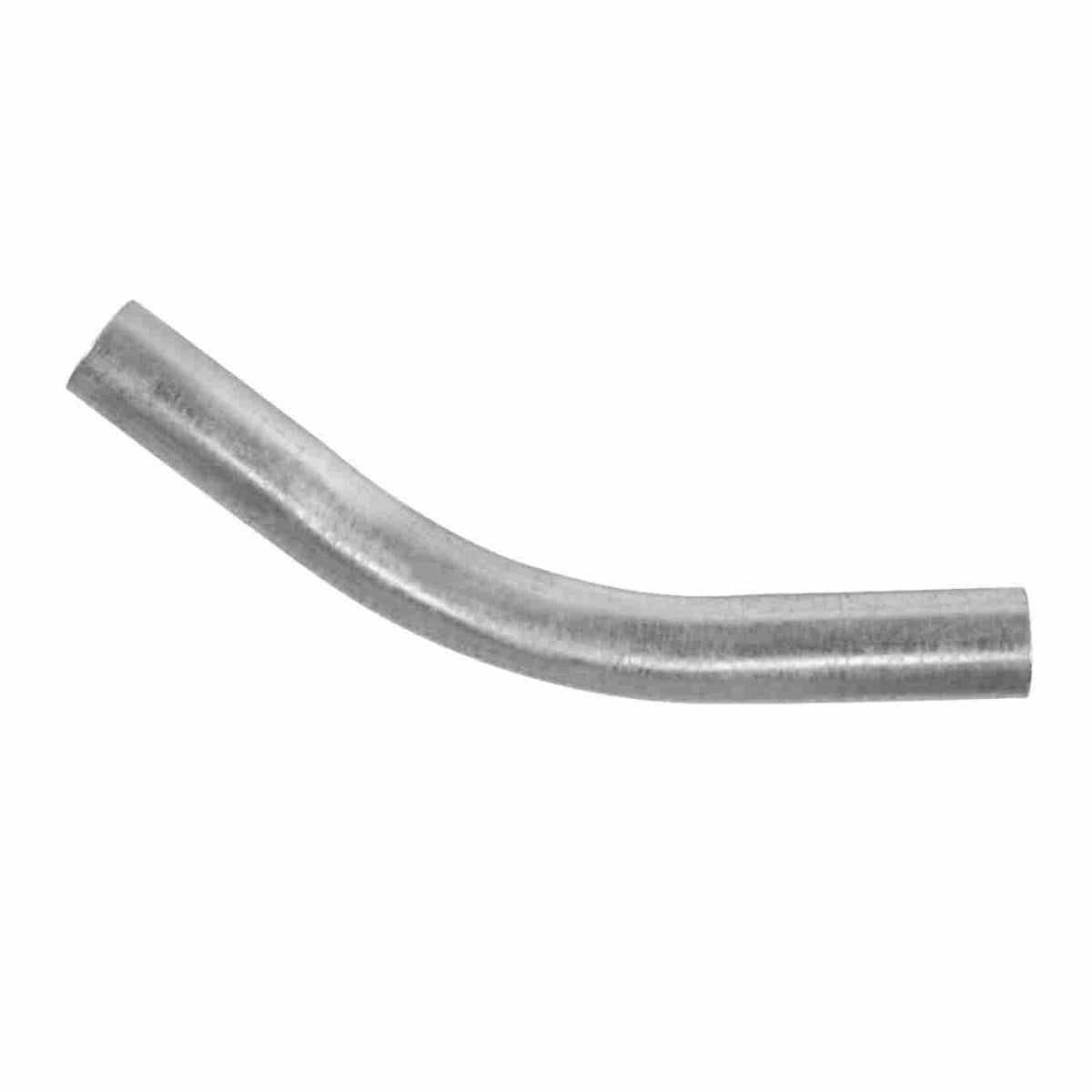

Orbit Industries EEL45-250 Emt Conduit Elbow 45 Degree 2-1/2 in

Product Description

The ORBIT INDUSTRIES EEL45-250 is a 45-degree EMT conduit elbow manufactured from prime EMT conduit stock in compliance with ANSI C80.3 (UL797). It is used to change the routing direction of an EMT conduit run in electrical installations. The interior and exterior surfaces are free from defects and feature a smooth welded seam. A hot-dip galvanizing process applies a thorough, even zinc coating for corrosion resistance. This elbow is installed by licensed electricians in commercial and residential wiring systems wherever a 45-degree directional change is required in the conduit pathway.

The EEL45-250 is suited for 2-1/2 inch trade size EMT conduit systems. It fits standard EMT conduit runs in both residential and commercial electrical installations where the conduit must change direction at a 45-degree angle. This elbow is a direct-fit component in new construction and retrofit wiring projects that use EMT as the raceway system. It is produced to standard trade sizing, making it compatible with other ANSI C80.3-compliant EMT fittings and couplings used in the field.

Key Features

• 45-degree bend angle for precise directional changes in EMT conduit runs
• 2-1/2 inch trade size matches standard EMT conduit dimensions
• Manufactured to ANSI C80.3 (UL797) specifications for consistent fit and performance
• Hot-dip galvanized zinc coating on interior and exterior surfaces for corrosion resistance
• Smooth welded seam interior reduces wire pull friction during conductor installation
• Defect-free surface finish meets standard trade quality requirements

Compatibility

Designed as an OEM-style replacement and standard trade fitting for 2-1/2 inch trade size EMT conduit systems compliant with ANSI C80.3 (UL797).

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit and verify with a meter before working on any associated conduit system. Secure all conduit connections with listed set-screw or compression fittings as required by the installation method. Inspect the elbow seam and coating for damage before installation to ensure the galvanized surface provides full corrosion protection in service.

Technical Specifications

• Trade Size: 2-1/2 inches
• Bend Angle: 45 degrees
• Conduit Type: EMT (Electrical Metallic Tubing)
• Coating: Hot-dip galvanized zinc
• Standard: ANSI C80.3 (UL797)
• UPC: 835243052970

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: EEL45-250
