Orbit Industries EEL22-200 Emt Conduit Elbow 22.5 Degree 2 Inch

Product Description

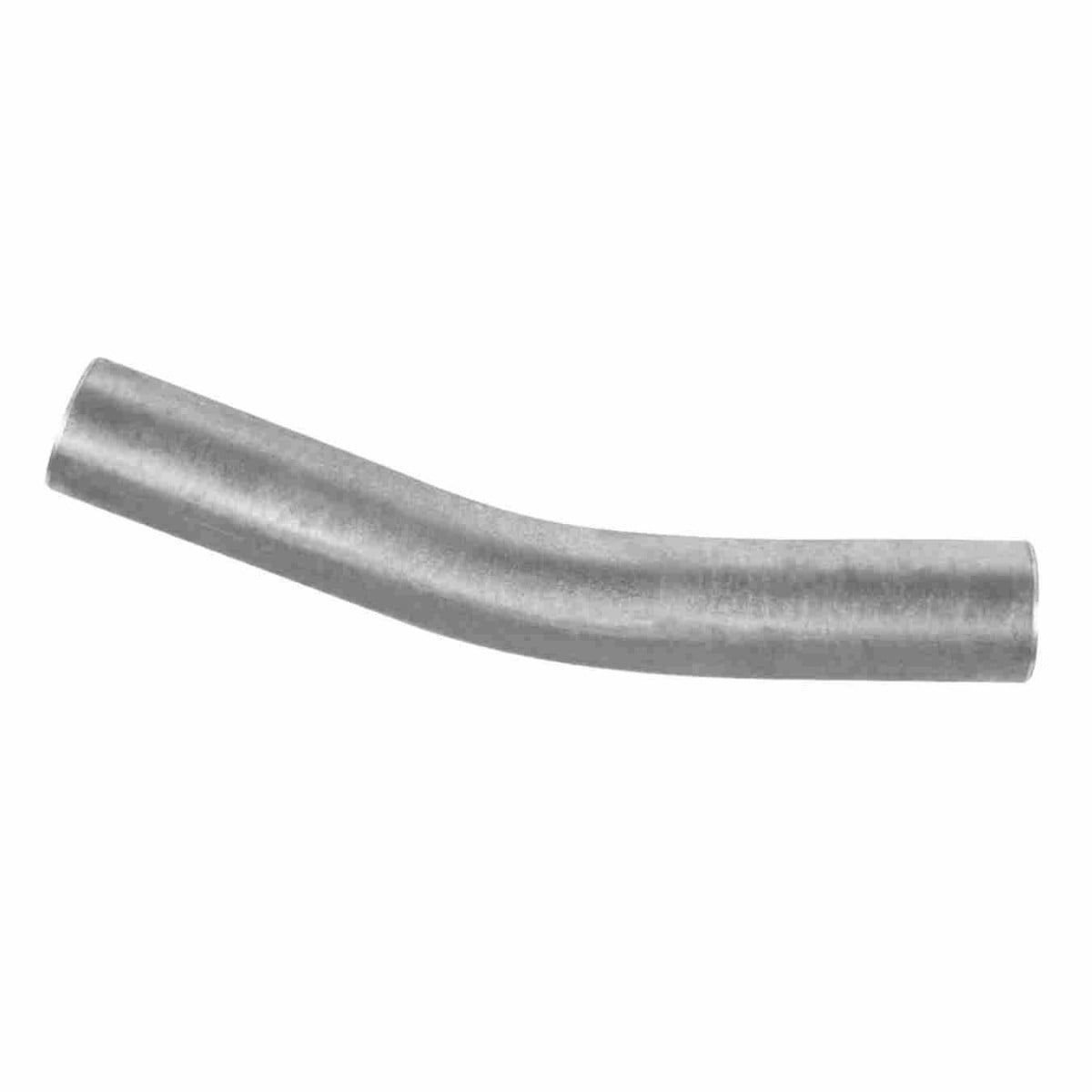

The ORBIT INDUSTRIES EEL22-200 is a 22.5-degree EMT conduit elbow manufactured from prime EMT conduit steel. It conforms to ANSI C80.3 (UL797) specifications, making it a code-compliant choice for commercial and residential electrical conduit installations. The interior and exterior surfaces are free of defects and feature a smooth welded seam. A hot-dip galvanizing process applies an even zinc coating throughout, providing corrosion resistance in typical conduit routing environments. Licensed electricians install this elbow when a raceway requires a shallow directional change in EMT conduit runs.

This elbow is sized for 2-inch trade size EMT conduit and is used in conduit systems where a 22.5-degree bend is needed to route wiring around structural elements or transition between surfaces. It is suitable for both exposed and concealed conduit installations in residential, commercial, and light industrial settings. The 22.5-degree angle produces a gradual directional change, which is useful when tighter bends are not practical or when field-bent conduit is not preferred.

Key Features

• Conforms to ANSI C80.3 (UL797) for EMT conduit fittings
• Hot-dip galvanized zinc coating on interior and exterior surfaces
• Smooth welded seam with defect-free surface finish
• 22.5-degree angle for shallow directional changes in conduit runs
• 2-inch trade size fits standard EMT conduit of that designation

Compatibility

Designed as an OEM-style replacement and standard fitting for 2-inch trade size EMT conduit systems installed per NEC requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the affected conduit run before beginning work. Secure all conduit connections using listed EMT couplings and fittings rated for the application. Do not use the elbow as a pulling point or apply force beyond what is needed to seat the fitting.

Technical Specifications

• Trade Size: 2 inches
• Bend Angle: 22.5 degrees
• Standard: ANSI C80.3 (UL797)
• Finish: Hot-dip galvanized zinc
• Material: Prime EMT conduit steel
• UPC: 835243054103

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: EEL22-200
