Orbit Industries BHA-16 Adjustable Bar Hanger 11-18 in

Product Description

The ORBIT INDUSTRIES BHA-16 is an adjustable bar hanger designed for mounting electrical boxes between ceiling joists or wall studs. It spans an adjustment range of 11 inches to 18 inches, giving electricians flexibility across varying framing layouts without the need for multiple bracket sizes. The hanger features notches along its length that accept self-tapping screws, allowing the electrical box to be secured firmly at the correct depth. This type of hanger is a standard rough-in component used in residential and light commercial electrical installations.

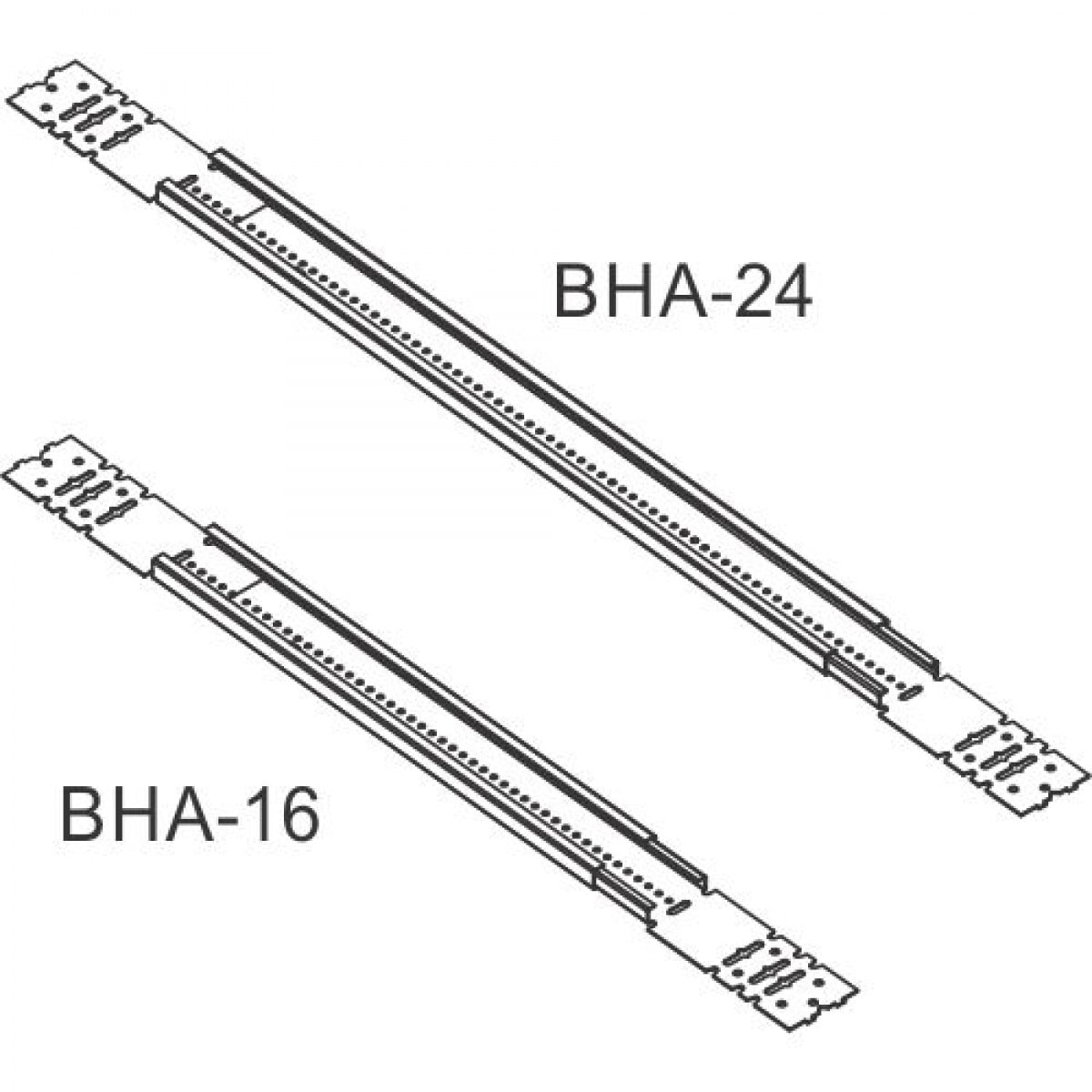

The BHA-16 is suited for new construction and retrofit applications where an electrical box must be positioned between framing members. It installs in ceiling joist bays for fixture boxes or horizontally between wall studs for device or junction boxes. The 11 to 18 inch adjustment range covers standard 12-inch and 16-inch on-center framing. ORBIT INDUSTRIES also offers the BHA-24 model for wider spans of 15-3/4 inches to 26 inches where greater reach is required.

Key Features

• Adjustable span from 11 inches to 18 inches to fit varying framing layouts
• Notched design accepts self-tapping screws for secure box mounting
• Compatible with ceiling joist and wall stud installations
• Supports both new construction and retrofit scenarios
• Part of a product family alongside the BHA-24 for wider span needs

Compatibility

Designed as an OEM-style bar hanger for use with standard electrical boxes in ceiling joist or wall stud framing with spacing that falls within the 11 to 18 inch adjustment range.

Installation Notes

Installation is performed by a licensed electrician following applicable NEC requirements. Power should be off and verified with a tester before working in any energized bay. The hanger is expanded to contact both framing members and locked in place before the electrical box is attached using self-tapping screws through the provided notches. Confirm box setback depth meets code requirements for the finished wall or ceiling surface before securing.

Technical Specifications

• Adjustment Range: 11 inches to 18 inches
• Mounting Method: Self-tapping screws through notched hanger bar
• Application: Ceiling joists and wall studs
• UPC: 835243001282

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: BHA-16
