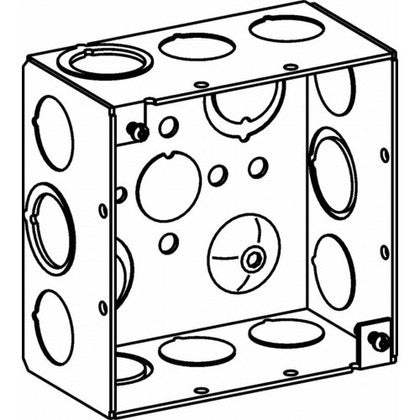

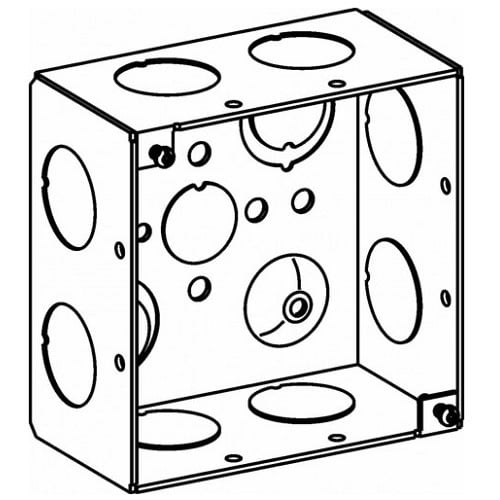

Orbit 4SDB-MKO Welded Square Box

Product Description

The Orbit 4SDB-MKO welded square box is constructed from 16 GA sheet steel and used to install lighting fixtures, switches, and receptacles in ceilings and walls. These 2-1/8" deep boxes include metal clad cable clamps for ease of installation.

• Raised Ground Emboss
• For Fixture/Luminaire Support of 50 lbs or less
• Welded

Product Highlights

The Orbit 4SDB-MKO is a welded square box made of 16 GA sheet steel with a capacity of 30.3 cu-in.

Product Information

Standard Information

• Brand: ORBIT
• Manufacturer Part Number: 4SDB-MKO

Technical Specifications

• Material: 16 ga Sheet Steel
• Mfg. Process: Welded
• Color: Galvanized
• KO Sides: (8) - 1/2", (4) - MKO
• KO Bottom: (2) - 1/2", (2) - MKO
• Std Pkg: 24
• Knockout Diameter: 1/2 in
• Mounting: Screw On, Nail On
• Depth: 2 1/8 in
• Cubic Inches: 30.300 in ³
• Number of Knockouts: 16
• Knockouts: Yes
• Shape: Square
• Capacity: 30.3 cu-in
• Dimensions: 4 in H x 4 in W x 2-1/8 in D
• Mounting Type: Offset
• Type: Welded
• Knockout Size: (8) - 1/2 in, (4) - MKO Sides, (2) - 1/2 in, (2) - MKO Bottom
