Orbit 4SB-MKO-EXT 4in Sq Box 1-1/2dp

Product Description

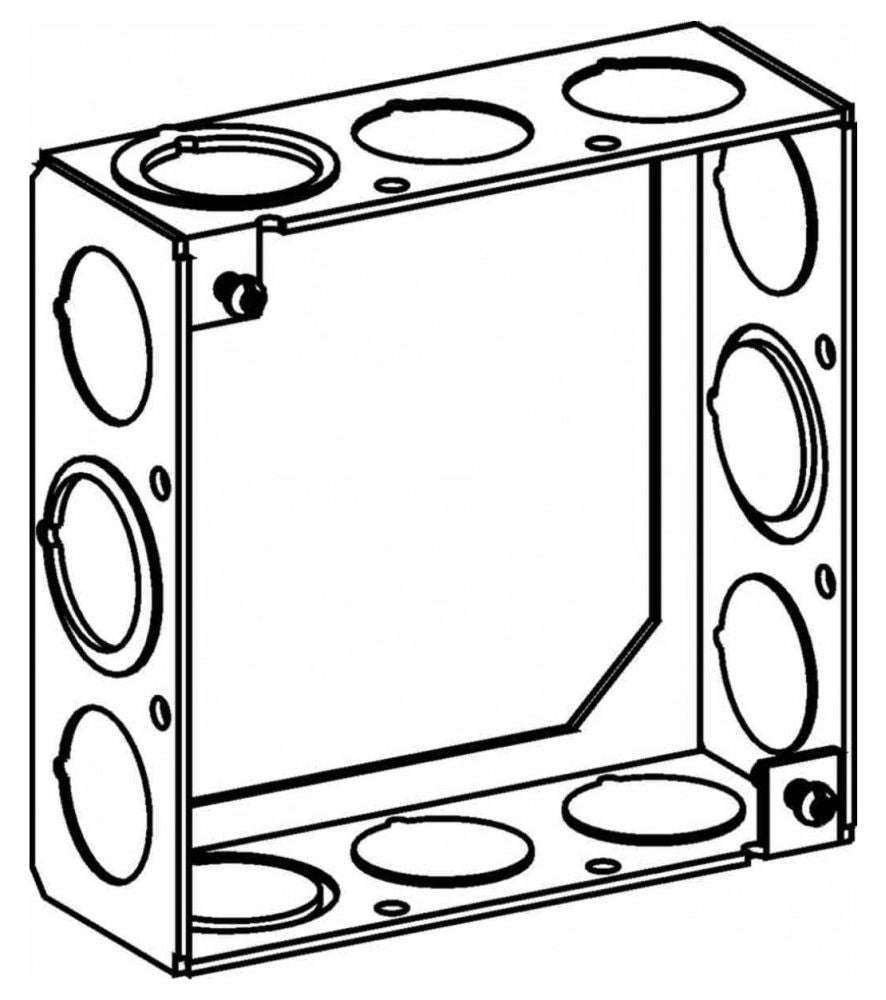

The Orbit 4SB-MKO-EXT is an electrical square box extension ring. It measures 4 inches in height and width, with a depth of 1-1/2 inches and a capacity of 21 cubic inches. Constructed from 16-gauge galvanized welded sheet steel, it features 12 knockouts: (8) 1/2 Inch Side, (4) 1/2 Inch and 3/4 Inch Side.

• Type: Square Box Extension Ring
• Material: 16 Gauge Galvanized Welded Sheet Steel
• Knockouts: (8) 1/2 Inch Side, (4) 1/2 Inch and 3/4 Inch Side

Product Highlights

This Orbit extension ring is made of galvanized steel and is suitable for use with 4-inch square boxes.

Product Information

Standard Information

• Brand: ORBIT
• Manufacturer Part Number: 4SB-MKO-EXT

Technical Specifications

• Type: Square Box Extension Ring
• Height: 4 Inch
• Width: 4 Inch
• Depth: 1.500000000000
• Cubic Capacity: 21.000000000000
• Number of Knockouts: 12
• Material: 16 Gauge Sheet Steel
• Approval: UL 514A, UL (Canada and US)
• RoHS Compliant: RoHS Compliant
• Construction: Welded
• Shape: Square
• For Use With: 4 Inch Square Box
• Size: 4 Inch Width x 4 Inch Height
• Manufacturer Name: Orbit Industries
• Finish: Galvanized
