Opw Engineered Systems 1431D0103 Brz Sight Flow Propeller Indicator 1 IN

Product Description

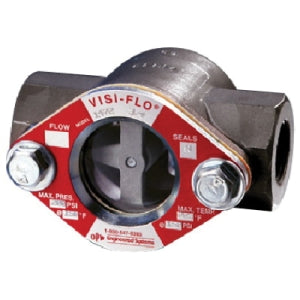

The OPW ENGINEERED SYSTEMS 1431D0103 Visi-Flo® Sight Flow Propeller Indicator, Series 1400 with a 1 IN size and FNPT connection. Constructed with a bronze body and a tempered soda lime glass window, it is designed to handle a flow rate of 0.7 GPM. It is suitable for applications requiring visual flow indication.

• Maintenance-free design requires no special maintenance or torqueing sequence to prevent leaks.
• Dimensional interchangeability matches Jacoby-Tarbox, Penberthy, and other manufacturer's units.
• High vacuum service rating up to 635 MM (25 IN) at 85.5% vacuum, which equates to 12.3 PSI (0.84 BAR) vacuum.

Product Highlights

The sight flow indicator features a bronze body, a tempered soda lime glass window, and is rated to 200 PSI and 225 DEG F.

Product Information

Standard Information

• Brand: OPW ENGINEERED SYSTEMS
• Manufacturer Part Number: 1431D0103

Technical Specifications

• Series/Model: Series 1400
• Size: 1 IN
• Connection: FNPT
• Flow Rate: 0.7 GPM
• Body Material: Bronze
• Window: Tempered Soda Lime Glass
• Pressure Rating: 200 PSI
• Temperature Rating: 225 DEG F
• Industry Standards: ASME B1.20.1
• Width: 4.25 IN
• Depth: 3.25 IN
• Height: 2.56 IN
• Sub Brand: Visi-Flo®
• Item Name: Sight Flow Propeller Indicator
