Product Description

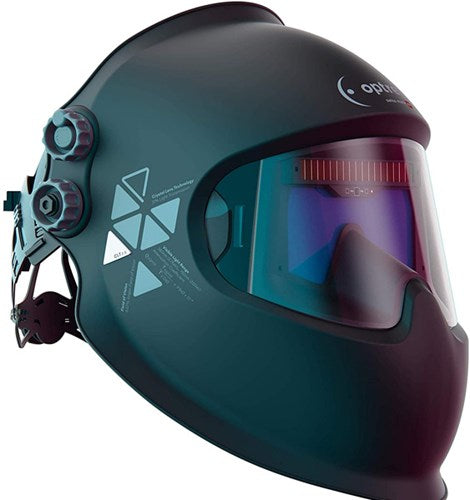

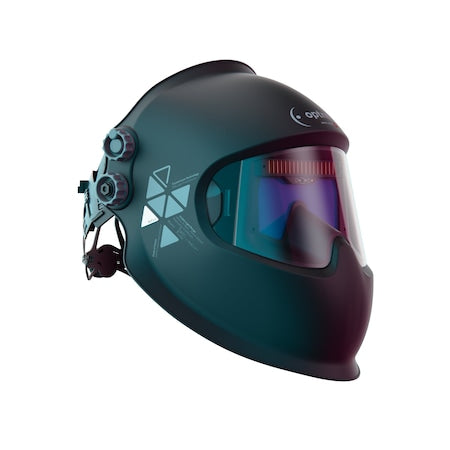

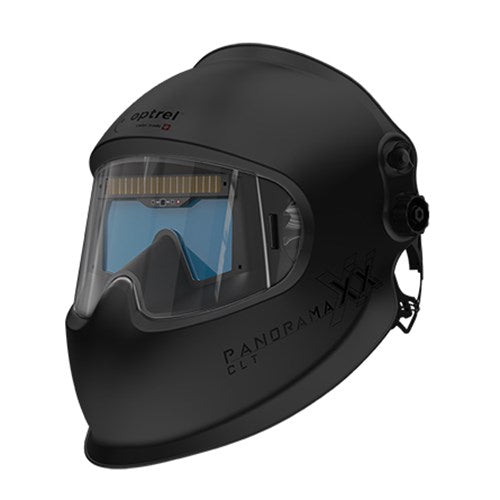

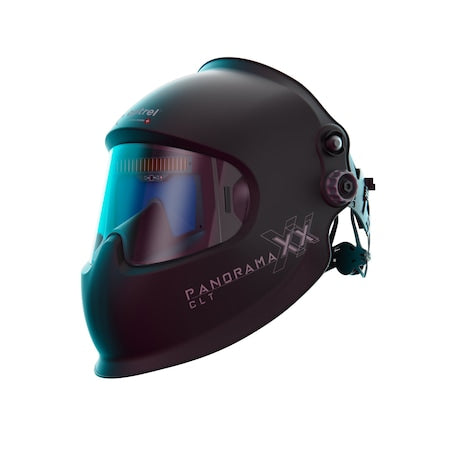

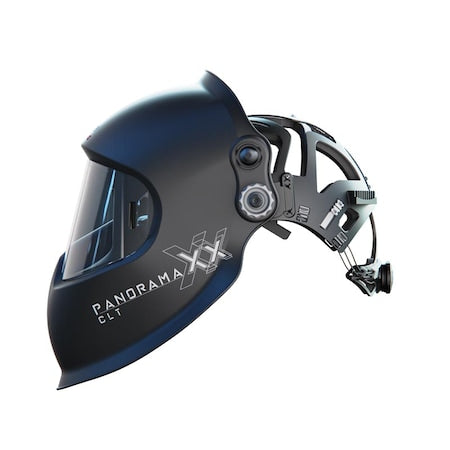

The OPTREL 1010.2 Panoramaxx CLT Black Welding Helmet is an automatic, rechargeable welding helmet with shade levels 2.0/4-12. It features ShadeTronic 5 sensor automatic shade adjustment, FadeTronic automatic fade control settings, and ISO-FIT headgear. The helmet combines a 600% increased panoramic field of view with Crystal Lens Technology.
- Automatic shade adjustment
- Automatic fade control
- Rechargeable
- 600% increased panoramic field of view
- True-color and detailed view of the weld pool
Product Highlights
Features automatic shade adjustment, automatic fade control, and a rechargeable design for a true-color, detailed view.
Product Information
Standard Information
-
Brand: OPTREL
-
Manufacturer Part Number: 1010.2
-
Country of Origin: Switzerland
Technical Specifications
-
Shade Levels: 2.0/4-12
-
Features: ShadeTronic 5 sensor automatic shade adjustment, FadeTronic automatic fade control settings, ISO-FIT headgear
-
Technology: Crystal Lens Technology
-
Brightness Level: 2.0 (in the closed state)
-
Helmet Viewing Area: 10+ in²
-
Fields of Application: Elektrode Welding (Stick Welding, SMAW), MIG/MAG (GMAW), GMAW High melting rate process, Flux Cored Wire Welding, TIG Welding (GTAW), Plasma Arc Welding, Plasma Cutting, Gas Welding, Grind Mode
-
Shade levels: ShadeTronic inactive: shade level 2.0 active, manual: shade levels 8-12 ShadeTronic 4-12 with individual calibration option ± 2.
-
Energy supply: solar cells, Li-polymer battery pack, chargeable via Micro-USB
-
Battery life range: 300 to 500 charging cycles
-
Sensoric: Five sensors
-
Sensitivity: continuously, new with "Super High" sensitivity
-
Switching time light to dark: 0.090 ms at 20°C 0.070 ms at 55°C
-
Switching time dark to light: 0.1 s to 2.0 s (with FadeTronic)
-
Field of vision: 2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF
-
Classification EN379: 1/1/1/2
-
Shape stability Mask: up to 220°C
-
Shape stability Front cover lens: up to 137°C
-
Eye protection: UV/IR protection: maximum protection at all shade levels
-
Operating temperature: -10°C to + 55°C / 14°F to 131°F
-
Storage temperature: -20°C to + 70°C / -4°F to 158°F
-
Weight: 600 g / 21.2 oz (argent 610 g / 21.5 oz) (PAPR 770g/780g)
