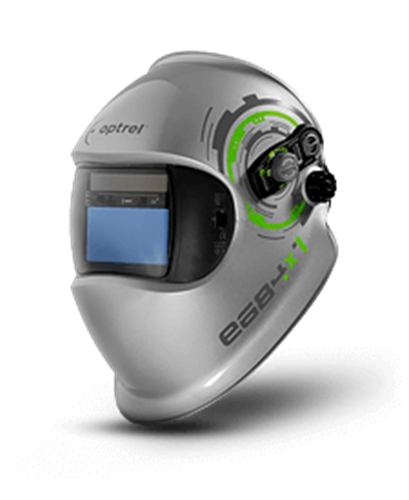

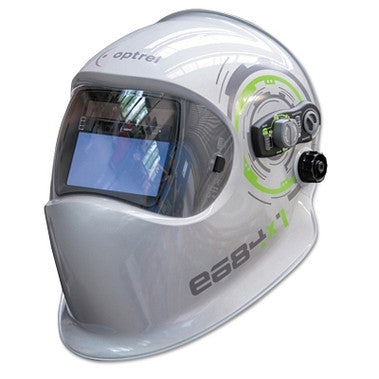

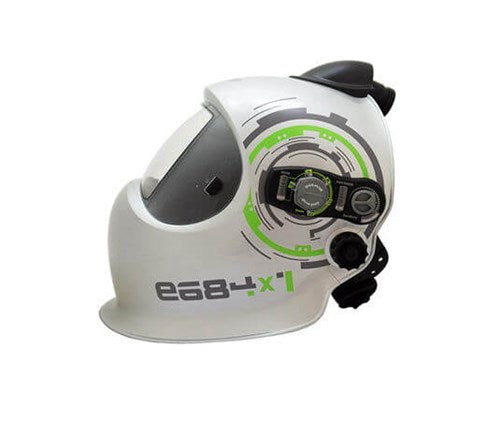

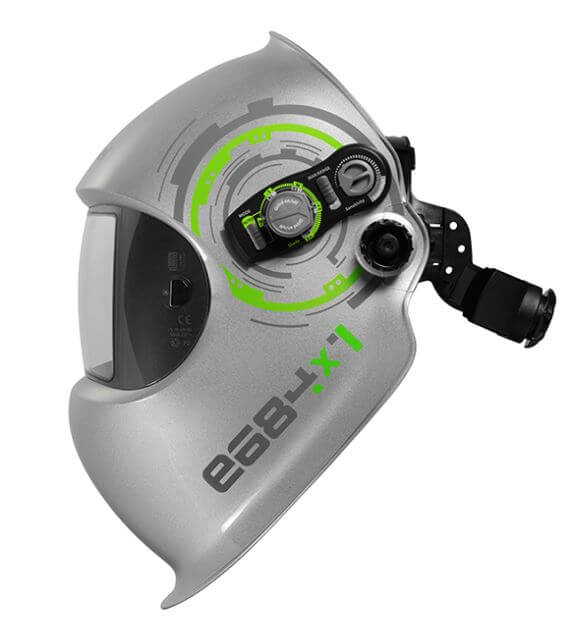

Optrel 1006.5 E684 Silver Welding Helmet

Product Description

The OPTREL 1006.5 E684 silver welding helmet is a fully automatic welding helmet with high-definition viewing. The helmet features adaptive shade autopilot, automatically adjusting the shade level as you weld. Its special HD lens provides a true color view to the welder. Compatible with the NIOSH-certified e3000 PAPR.

• Fully automatic welding helmet with high definition viewing
• Efficiently reflects light and heat to keep welder's head cooler in extremely hot working environments
• Curved helmet design deflects smoke, particles and other airborne debris when performing overhead welding jobs

Product Highlights

This welding helmet provides superior viewing at every angle, enabling welders to concentrate and make their weld with more precision.

Product Information

Standard Information

• Brand: OPTREL
• Manufacturer Part Number: 1006.5
• Country of Origin: CH

Technical Specifications

• MPN: 1006.5
• Brand: OPTREL
• Category 1: SAFETY & SECURITY
• Category 2: HEAD/FACE PROTECTION
• Height: 10.63
• Length: 10.25
• Width: 9.13
• Battery Size: 3V
• Battery Type: Lithium-Ion
• Delay: Y
• Lens Coating/Shade: SL 5-13
• Lens Speed: 0.170 ms
• Power Source: Battery; Solar
• Resistance: UV/IR
• Series: e684
• Size of Cartridge: 3 1/2 in x 4 1/3 in x 1/4 in
• Style: Auto Darkening Helmet
• Temp. Range [Max]: 158 °F
• Temp. Range [Min]: 14 °F
• Type: Welding Helmet
• Window Size: 2 in x 4 1/4 in
• Shade Levels: 4/5-13
• Adaptive Shade Autopilot: Yes
• Infinite Shade Level Adjustment: Yes
• Sensitivity Control: Yes
• Opening Delay: Yes
• # Sensors: 3
• High Definition Viewing: Yes
• Optical Class: 1/1/1/1
• True Color Filter: Yes
• Twilight ADF Technology: Yes
• Helmet Weight: 16.7 oz
• e3000 Compatible: Yes
• Overhead Welding: Yes
• Grind Mode: Yes – Shade Level 4
• Switching Time / Light to Dark: 0.170ms at room temperature, 0.110ms at 131F
• Switching Time / Dark to Light: 0.1 – 0.2s (with patented Twilight ADF Technology)
• Power: Solar Cells and 2 CR2032 Batteries (approx. 3,000 hours)
• Welding Applications: All Electric Arc Welding processes, Electrode Welding (Stick Welding, SMAW), MIG, MAG (GMAW), GMAW High Melting Rate Process, Flux Cored Wire Welding, TIG welding (GTAW), Plasma Arc Welding, Micro Plasma Arc Welding, and Plasma Cutting & Oxy-Gas Welding. Prohibited for laser and gas welding!
• Shade Level: Automatic
• Comfort: All Inclusive
• Shade levels: ShadeTronic inactive: shade level 2.0 active, manual: shade levels 8-12 ShadeTronic 4-12 with individual calibration option ± 2
• ADF size / field of view: 90 x 110 x 7 mm / 50 x 100 mm
• Eye protection: maximum UV- & IR-protection on all shade level
• EN379 classification: Optical class: 1 / Scattered light: 1 / Homogeneity: 1 / Angular dependence: 1
• Classification due to EN175: B (120m/s impact resistance)
• Switching timelight to dark: 0.090 ms at 20°C 0.070 ms at 55°C / dark to light: 0.1 s to 2.0 s (with FadeTronic)
• Switching time dark to light: 0.1 – 2.0 s with patented twilight function
• Power supply: solar cells and 2 batteries, exchangable
• Operating time batteries: appr. 3000 hours (operation)
• Operating Temperature: -10°C to +55°C / 14°F to 131°F
