Optex RLS-LAT Laser Alignment Tool for Rls 1010L

Product Description

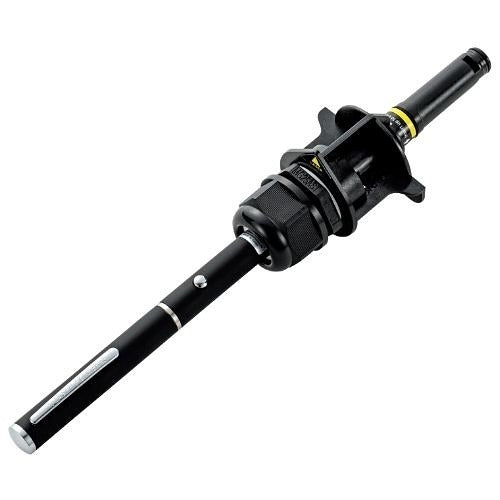

The OPTEX RLS-LAT is a laser alignment tool designed for use with the RLS 1010L passive infrared sensor. It attaches to the sensor to project a laser beam that identifies the exact detection zone during setup, eliminating guesswork when positioning wall-mount PIR units. Security and low-voltage alarm technicians use this tool during commissioning to verify sensor aim before finalizing the installation. Precise sensor alignment reduces false triggers and ensures the detection field covers the intended area without gaps or overlap.

The RLS-LAT is intended for indoor wall-mount PIR sensor installations in residential and commercial security or access-control applications. It is specifically designed as an alignment accessory for the OPTEX RLS 1010L sensor. Technicians mount it temporarily during setup to confirm detection zone coverage, then remove it before placing the system into service.

Key Features

• Projects a laser beam to visually confirm PIR sensor detection zone aim
• Designed for use with the OPTEX RLS 1010L wall-mount PIR sensor
• Eliminates alignment guesswork during sensor commissioning
• Supports faster, more accurate sensor positioning in indoor environments
• Sold as a single unit accessory for targeted use

Compatibility

Designed for use with the OPTEX RLS 1010L indoor wall-mount passive infrared sensor.

Installation Notes

Installation and commissioning of PIR sensors and alignment accessories should be performed by a licensed low-voltage or alarm systems technician. Power down the associated control panel or sensor circuit before mounting or adjusting sensor hardware. Attach the laser alignment tool temporarily during aim adjustment and remove it before returning the system to normal operation. Follow applicable local codes and manufacturer guidelines for sensor placement and detection zone configuration.
