Optex FX-360 Fx-360

Product Description

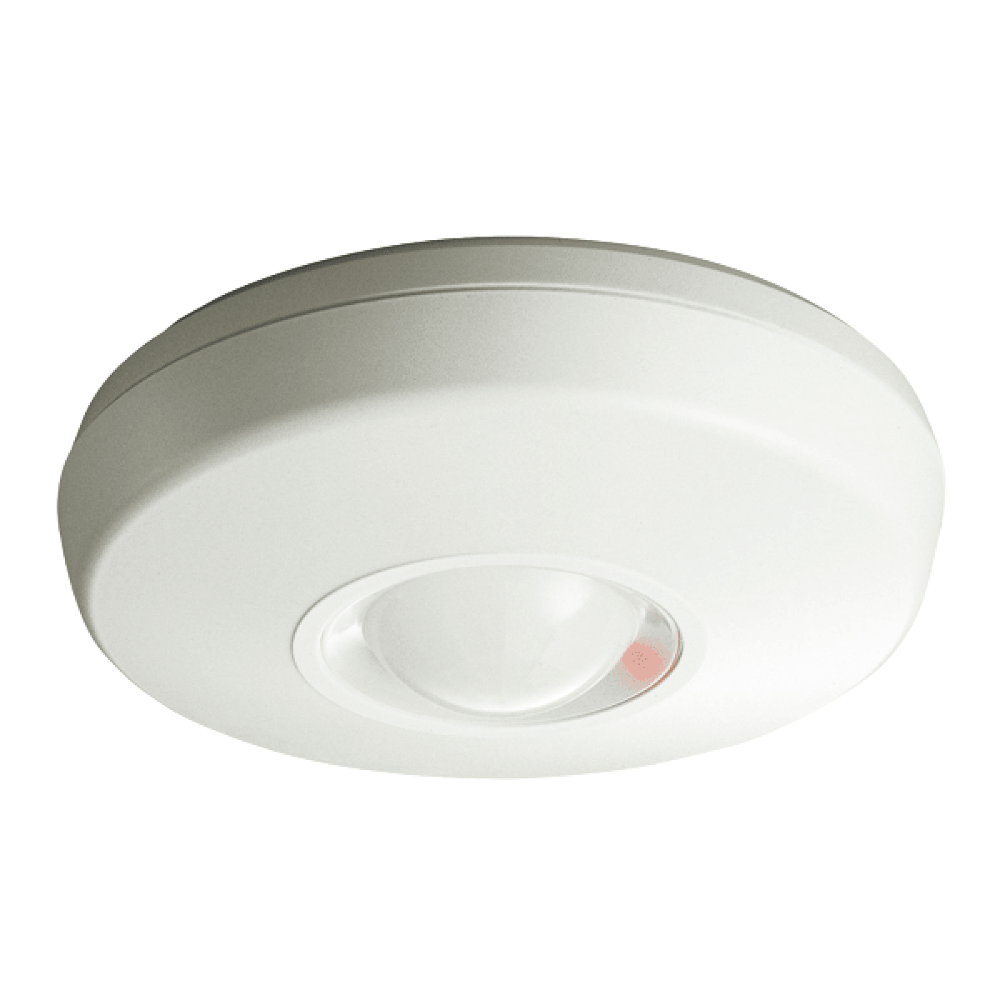

The OPTEX CO FX-360 ceiling-mount detector features a durable spherical lens, offering 360° detection performance. False alarm protection technologies, including RFI Protection, Temperature Protection, and Noise Reduction, come standard. Its sleek and compact design suits various installation applications. Detects speeds from 0.3 to 1.5 m/sec at a mounting height of 2.4 to 3.6 m.

• Ceiling Mount with Unparalleled 360 degree Detection Performance
• Originally Designed Hard Spherical Lens
• RFI Immunity 20V/m

Product Highlights

Cost-effective 360° ceiling mount detector with unbeatable detection performance and reliability. Sleek, compact design suitable for all installation applications.

Product Information

Standard Information

• Brand: OPTEX CO
• Manufacturer Part Number: FX-360
• Country of Origin: Japan

Technical Specifications

• Model: FX-360
• Coverage: Φ8 m - Φ12 m
• Detection zones: 62 zones
• Sensitivity: 1.6°C at 0.6 m/sec. at 2.4 m mounting height
• Detectable speed: 0.3 to 1.5 m/sec.
• Power supply: 9.5 to 18 VDC
• Current consumption: 18 mA (max.) at 12 VDC
• Alarm period: 20 ±0.5 sec.
• Alarm output: N.C. 28 VDC 0.2 A max.
• Tamper switch: N.C, Open when cover is removed: 30 VDC 0.1 A max.
• Pulse count: 20 ±0.5 sec. 2 or 4
• Warm-up period: Approx. 30 sec. (LED blinks)
• LED indicator: LED blinks during warm-up period
• Alarm indicator optional: Alarm indicator optional
• Environmental humidity: 95% max.
• Operating temperature: -20°C to +50°C
• RF interference: No Alarm 20 V/m
• Mounting height: 2.4 to 3.6 m
• ADI Part Number: OP-FX360
• Brand Name: Optex
• Manufacturer: Optex, Inc
• Manufacturer Part Number: FX-360
• Product Line: FX
• Product Model: FX-360
• Product Series: FX-360
• Product Type: Motion Sensor
• Application/Usage: Commercial
• Connectivity Technology: Wired
• Maximum Motion Sensing Distance: 40'
• Maximum Viewing Angle: 360°
• Passive Infrared Sensor (PIR): Yes
• Security Grade: 2
• Input Voltage: 18V DC
• Power Source: DC Power
• Installation Type: Hybrid
• Mount Type: Wall Mount
• Type: Motion Detectors
• MPN: FX-360
• UPC: 788924081137
• Country of Origin: Japan
