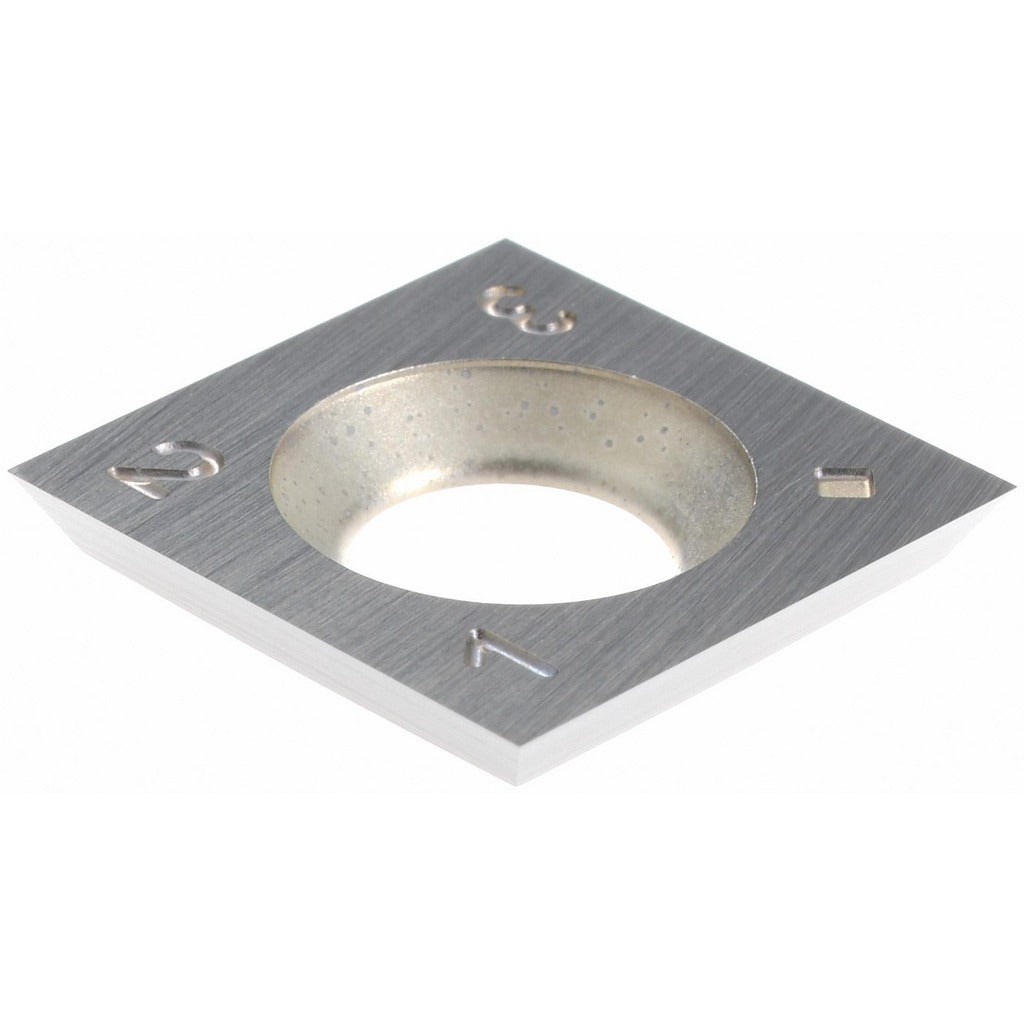

Onsrud 91-125 Solid Carbide Milling Insert Diamond 1/2 in Ic

Product Description

The ONSRUD 91-125 is a solid carbide milling insert designed for use in CNC routing and milling operations on engineered wood and lightweight composite materials. This single-sided, diamond-shaped insert features a bright uncoated finish, a C2 carbide grade, and a positive rake geometry with a flat top chip breaker. At 0.25 inches thick with a 0.5512-inch inscribed circle, it delivers consistent cutting performance in screw-held toolholders. The neutral hand orientation makes it adaptable across standard insert-seat configurations. It is installed by CNC machining technicians and production tooling specialists.

This insert is rated for cutting particleboard, MDF, and balsa wood, making it well suited for cabinetry, furniture component manufacturing, sign-making, and similar high-volume woodworking production environments. The VGPT insert style and Series 91-000 and 91-100 cutter series compatibility make it a direct fit for existing ONSRUD tooling setups. Maximum depth of cut is 0.125 inches. The flat top chip breaker geometry helps manage chip flow in abrasive engineered wood substrates where edge retention is critical.

Key Features

• Solid carbide C2 grade construction for durability in abrasive wood composites
• Diamond insert shape (VGPT style) with positive rake for clean, efficient cuts
• Bright uncoated finish suitable for dry cutting of particleboard, MDF, and balsa
• Flat top chip breaker for controlled chip evacuation in high-feed applications
• 7-degree relief angle with neutral hand for broad toolholder compatibility
• Screw-held insert mounting for secure, repeatable seating in the cutter body

Compatibility

Compatible with ONSRUD Series 91 cutter bodies, including the Series 91-000 and Series 91-100 lines. Designed for use in applications involving particleboard, MDF, and balsa. Inscribed circle range of 0.5100 to 0.6000 inches and thickness range of 0.2500 to 0.3500 inches apply to compatible seat specifications.

Installation Notes

Installation is performed by CNC tooling technicians. Before replacing inserts, power down the spindle and lock out the machine per your facility LOTO procedures. Ensure the insert pocket and clamping screw threads are clean and free of debris before seating the insert. Use the correct torque tool for the clamping screw as specified by the cutter body manufacturer to avoid over-torquing the seat.
