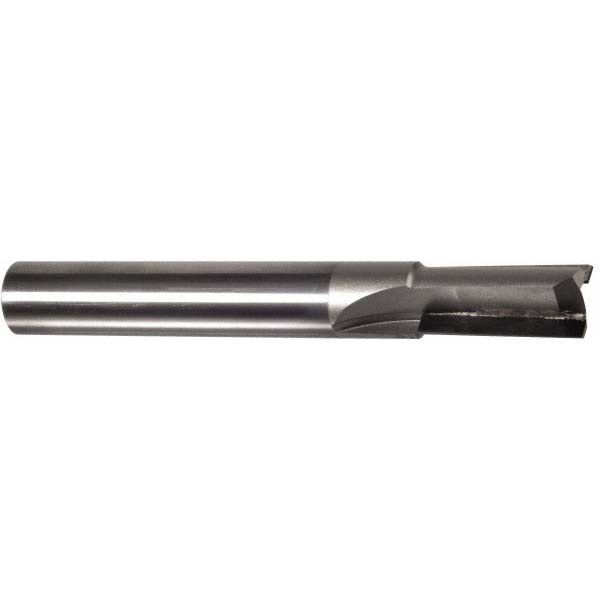

Onsrud 68-050 Pcd Router Bit 1/4 in 2 Flute Composite

Product Description

The ONSRUD 68-050 is a 2-flute, double edge straight router bit engineered for cutting composite panels and fiberglass. The cutting edge is tipped with Polycrystalline Diamond (PCD), a material chosen specifically for its extreme wear resistance in abrasive, non-metallic substrates. With a cutter diameter of 0.25 inches and a length of cut of 0.75 inches, this bit handles edge profiling and through-cutting operations where bit longevity is a priority. The 0.25-inch shank fits standard collet sets, and the 3-inch overall length provides sufficient reach for most CNC router and handheld router setups. Right-hand cutting direction is standard for conventional milling passes.

This router bit is intended for use in composite panel fabrication, fiberglass component trimming, and similar hard-on-tooling materials found in marine, signage, and industrial panel work. The PCD tip construction makes it well-suited for production environments where tool change frequency must be minimized. It is non-piloted, so operation requires a fence, template, or CNC toolpath for guidance. The straight flute geometry delivers clean shear cuts with minimal delamination on faced composite materials.

Key Features

• Polycrystalline Diamond (PCD) cutting edges for extended tool life in abrasive substrates
• Double edge router style provides balanced cutting forces
• Straight flute geometry minimizes delamination on composite and fiberglass faces
• Right-hand cut direction compatible with standard CNC and handheld router spindle rotation
• Non-piloted design for use with CNC toolpaths, fences, or templates
• 0.25-inch shank fits widely available collet sizes

Compatibility

Designed for cutting composite panels and fiberglass. Part of the ONSRUD 68-000 series. Non-piloted; requires external workholding or CNC guidance for accurate cuts.

Installation Notes

Installation is performed by a machinist or CNC operator using a properly sized collet and torque wrench per the router manufacturer's specifications. Ensure the router spindle is fully de-energized and locked out before inserting or removing the bit. Inspect the PCD tip for chipping or wear before each production run. Eye protection and appropriate dust collection are required when routing composite or fiberglass materials due to fine abrasive particulate.
