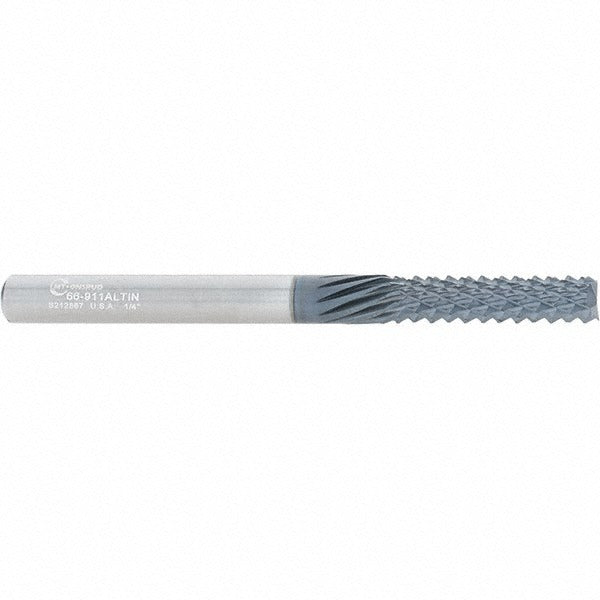

Onsrud 66-911ALTIN Diamond Pattern Router Bit Altin

Product Description

The ONSRUD 66-911ALTIN is a solid carbide diamond pattern router bit designed for high-performance material removal in composite applications on CNC machines. The bit runs a 0.25 inch cutter diameter with a 1 inch length of cut and a 3 inch overall length, ground from solid carbide stock and finished with an AlTiN (aluminum titanium nitride) coating. AlTiN coating increases surface hardness and heat resistance at the cutting edge, extending tool life in abrasive composite materials. This is a right-hand cutting end mill style bit intended for professional CNC routing operations.

This router bit is engineered for use with CNC machines cutting composite materials such as carbon fiber, fiberglass, and similar layered or reinforced substrates. The diamond pattern geometry helps manage chip evacuation and reduces delamination risk common in composite machining. With a 0.25 inch shank diameter and 2 inch shank length, it seats securely in standard collet systems. The 66-900 series is a recognized production tooling line suited for fabrication shops, aerospace component work, and industrial composite panel routing.

Key Features

• Solid carbide construction for rigidity and wear resistance in abrasive composites
• AlTiN coating provides elevated heat resistance and extended cutting edge life
• Diamond pattern geometry promotes clean chip evacuation and reduces delamination
• Right-hand cutting direction compatible with standard CNC spindle rotation
• 0.25 inch cutter diameter with 1 inch length of cut for detail and slot work
• Part of the ONSRUD 66-900 series production tooling line

Compatibility

Designed for use in CNC machines accepting a 1/4 inch (6.35 mm) shank collet. Optimized for routing composite materials including carbon fiber and fiberglass laminates.

Installation Notes

Installation should be performed by a qualified CNC operator or machinist. Ensure the CNC spindle is fully powered down and at a complete stop before inserting or removing the bit from the collet. Seat the shank fully into the collet to the recommended insertion depth and torque the collet nut per the machine manufacturer specification. Inspect the cutting edges for chips or coating wear before each production run.
