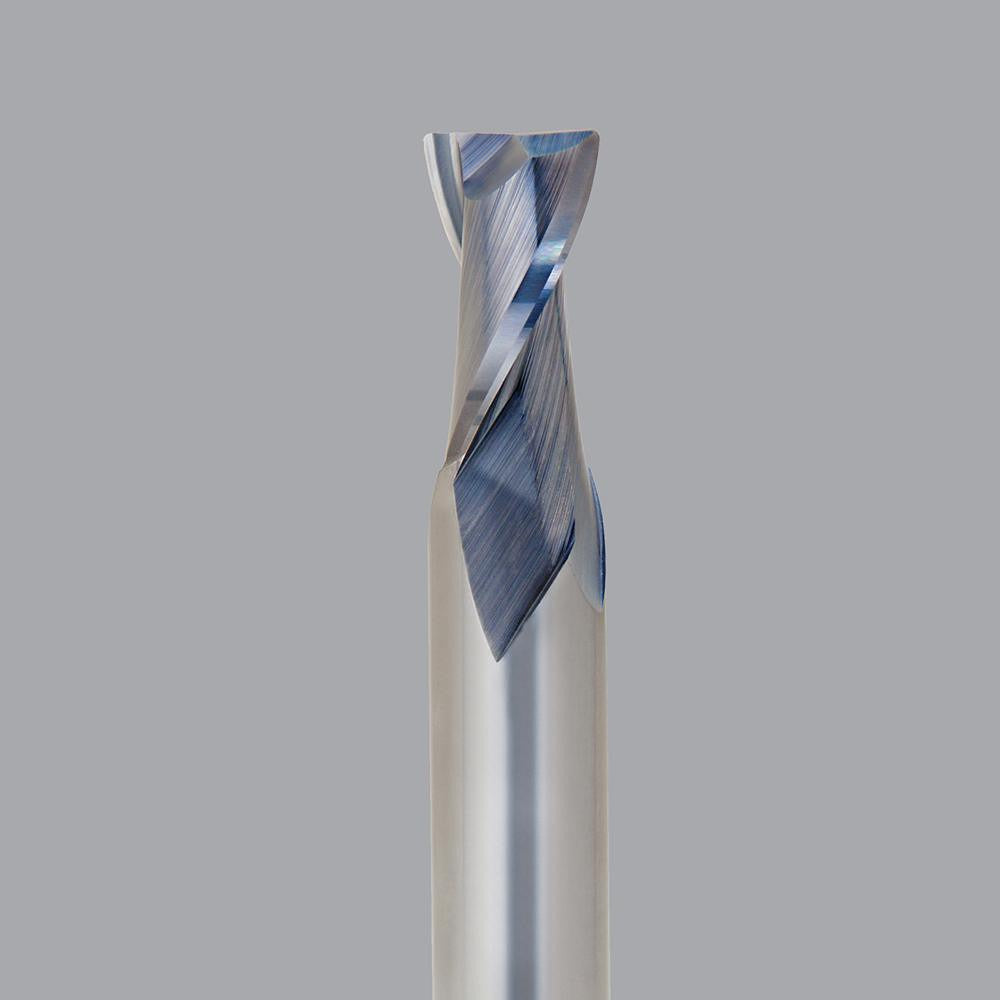

Onsrud 66-315 Upcut Spiral Router Bit 1/4 in Solid Carbide

Product Description

The ONSRUD 66-315 is a solid carbide upcut spiral router bit designed for precise cutting in aluminum and plastics. With a 0.25-inch cutter diameter and a 0.375-inch length of cut, this bit removes chips upward and away from the workpiece, helping to keep cutting edges clear and improving surface finish in softer non-ferrous and synthetic materials. The 30-degree helix angle promotes smooth chip evacuation during production routing. It is uncoated and engineered for use in CNC routing applications where tight tolerances and clean cuts are required. Licensed machinists, CNC operators, and fabrication shops are the primary users of this tooling.

This bit is suited for routing aluminum sheet, plate, and extrusions as well as a range of plastics including acrylic, HDPE, and similar thermoplastics. The bottom-surfacing router style and right-hand cutting direction make it appropriate for conventional CNC routing setups. Its compact 2-inch overall length and 1/4-inch shank diameter fit standard router collets found on CNC routers and handheld routing equipment used in fabrication and sign-making environments.

Key Features

• Solid carbide construction for rigidity and wear resistance in aluminum and plastics
• Upcut flute geometry evacuates chips away from the cutting zone
• 30-degree helix angle promotes smooth, consistent chip flow
• Uncoated finish suitable for non-ferrous metals and synthetic materials
• Right-hand cutting direction compatible with standard CNC router spindles
• 1/4-inch shank fits widely available collet sizes on CNC and handheld routers

Compatibility

Designed for use in CNC routers and handheld routing equipment with a 1/4-inch collet, and intended for material applications including aluminum and plastics. Part of the ONSRUD 66-300 series.

Installation Notes

This bit is installed and changed by CNC operators or machinists following standard tooling procedures. Power down and de-energize the spindle completely before changing tooling. Secure the shank fully within the collet to the manufacturer-specified engagement depth and verify collet nut torque using appropriate tooling before resuming operation. Inspect the bit for chipping or wear before each use, as carbide tooling can fail without visible warning if run in incorrect materials or at improper feed and speed settings.
